DC Padhack

Hi Folks,

here you can find how to a padhack for the original DC Pad including making of the DC-Cable for it.

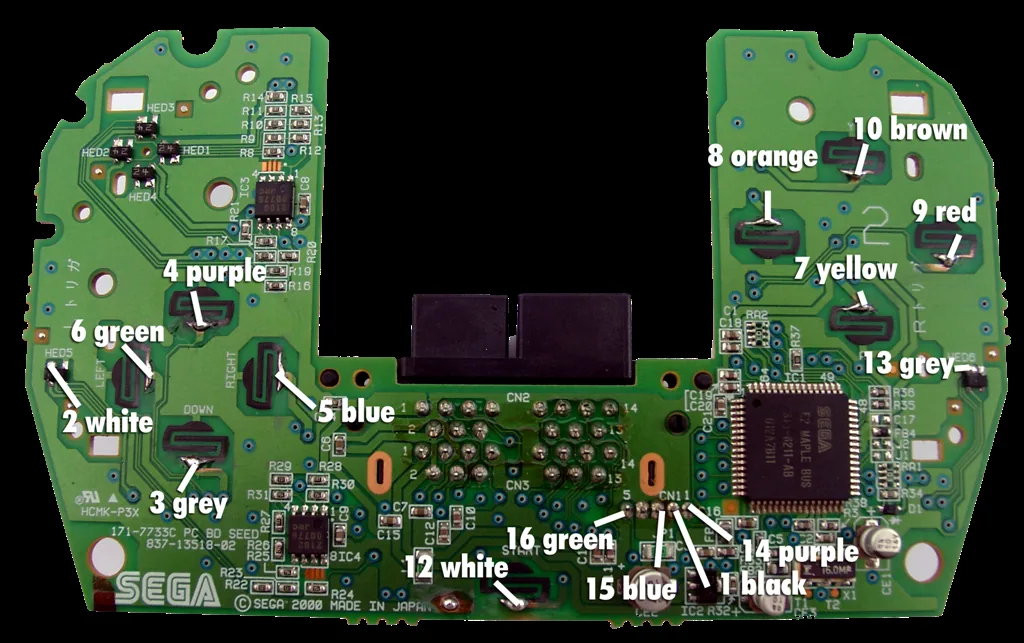

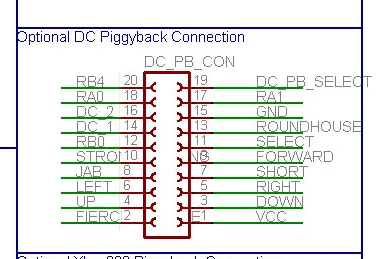

Padhack:

Pin	Color
1	black	VCC Pin 2 (blue)	Pin 2 CN1
2	white	7 Hard Punch FIE=FIERCE	Left Trigger
3	grey	DOWN	DOWN
4	purple	UP	UP
5	blue	RIGHT	RIGHT
6	green	LEFT	LEFT
7	yellow	1 SHO=SHORT Light Kick	A (green)
8	orange	5 JAB Light Punch	X (blue)
9	red	2 FOR=FORWARD Medium Kick	B (red)
10	braun	6 STR=STRONG Medium Punch	Y (yellow)
11	black	L-PB SEL=SELECT
12	white	R-PB RB0 Start	Start
13	grey	3 ROU=ROUNDHOUSE Strong Kick	Right Trigger
14	purple	DC 1 Pin 1 (red)	Pin1 CN1
15	blue	GND Pin 3 (black)	Pin3 CN1
16	green	DC 2 Pin 5 (white)	Green usb cable
17	yellow	RA1	LTrigger
18	orange	RA0	LButton
19	red	DC PB Select
20	braun	RB4	Guide

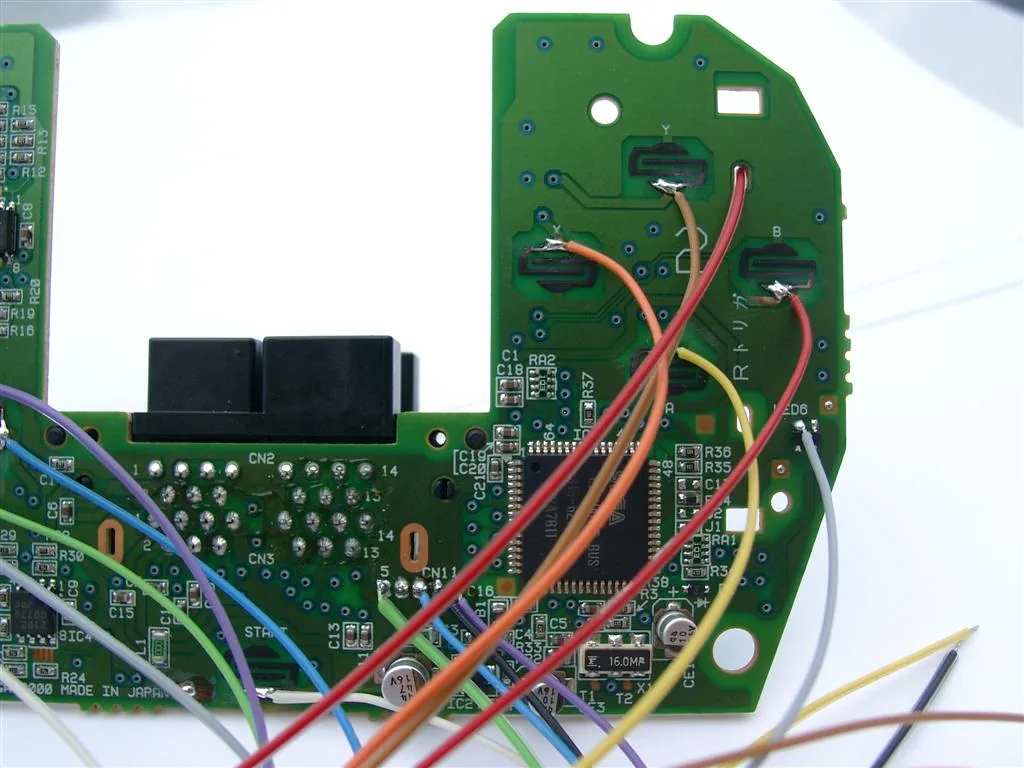

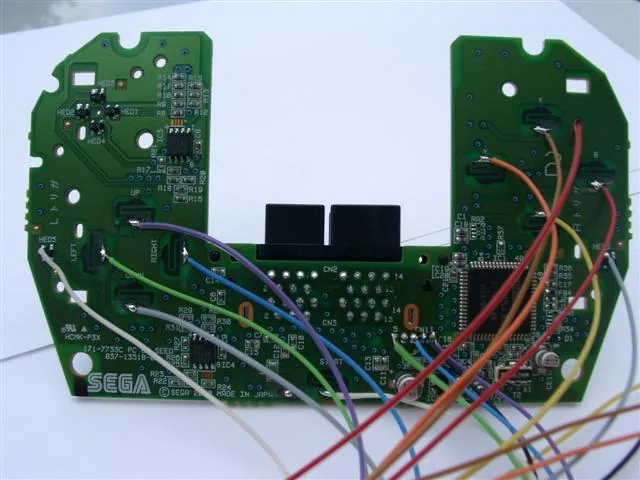

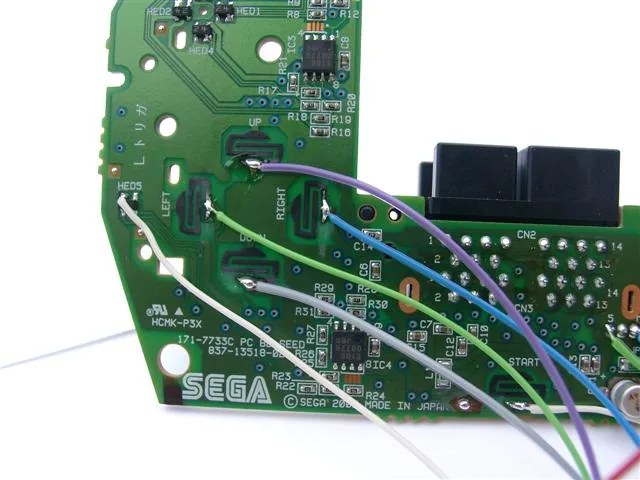

Pictures:

Dreamcast Cable:

Pictures of Sub-D 15 pin male:

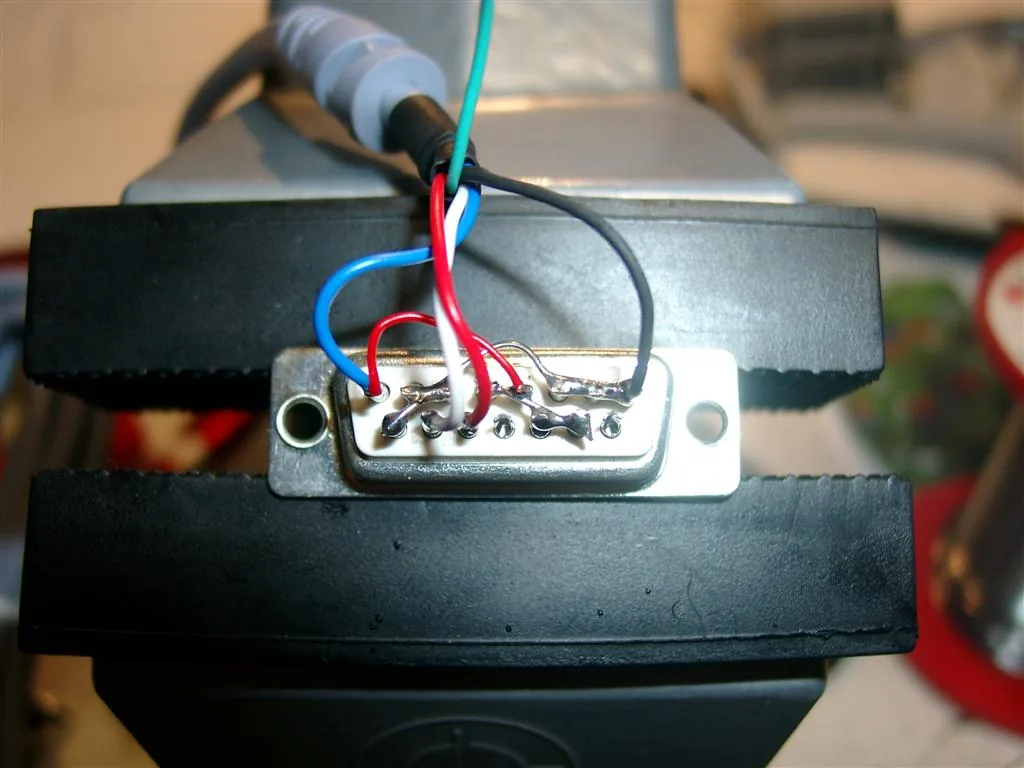

soldering
DC Pinout
DC-Connector CN1 		Sub-D 15 pin male:
Pin	Description		Pin	Description
1	Serial A   (red)	1	3 (GND)
2	VCC +5V (blue)	2	Low
3	GND      (black)	3	Low
4	Sense     (green)	4	High
5	Serial B  (white)	5	High
                            6	Low
                            7	Low
                            8	2 (VCC +5V)
                             ______________________
                            9	NC -
                            10	High
                            11	High
                            12	NC -
                            13	1 Serial A (red)
                            14	5 Serial B (white)
                            15	Low
