easy mod of a neogeo Stick 2

Hi Folks,

we have some NeoGeo Sticks 2 for PS3 in stock. But it works not @ the good old neogeo. So I make an easy hack for the neo geo. After the mod it works on PC, PS3, Neo Geo, NeoGeo CD, MAK and Clones. (Attention do not connect both PS3 and NeoGeo at the same time). You can buy it ready for use if you want or make it yourself.

I make use of 6 Buttons at the neogeo connector.

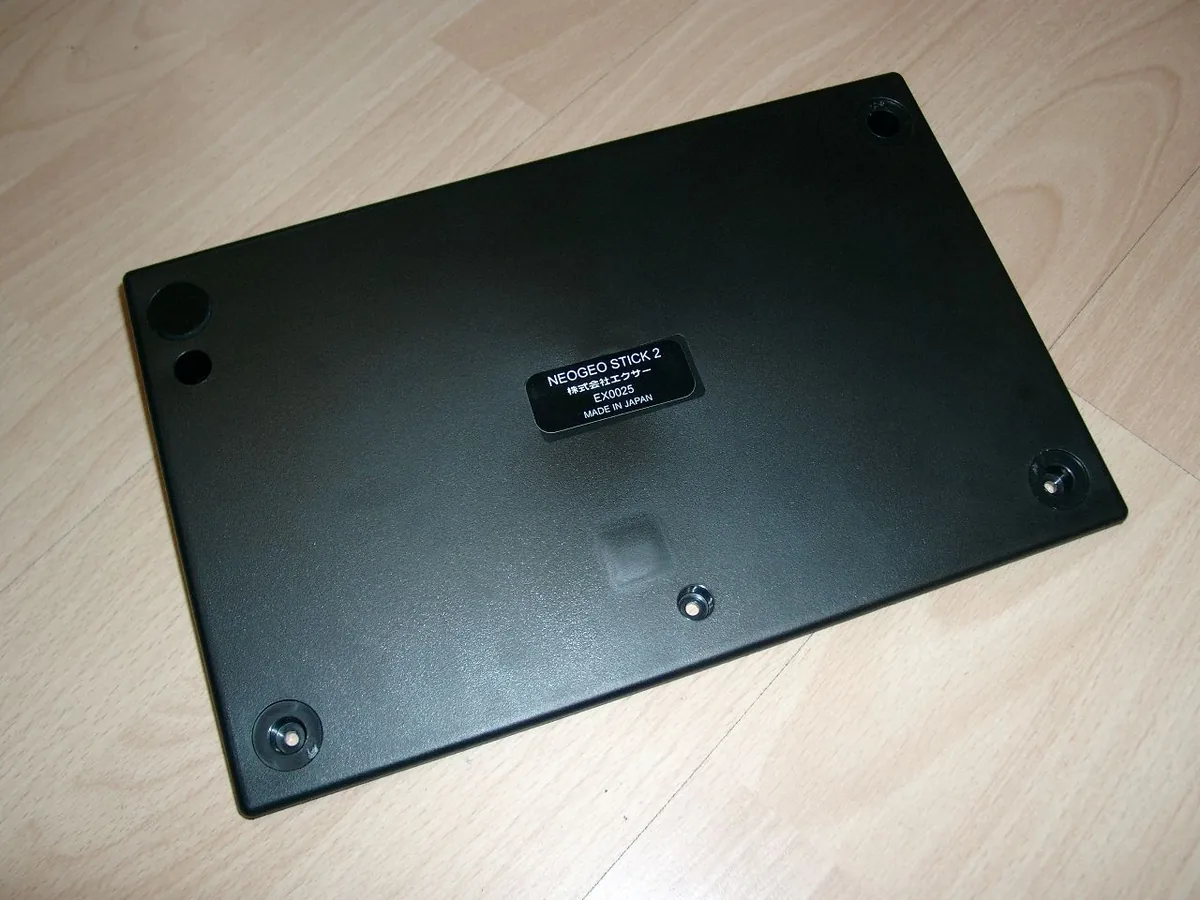

opening
opening

you have to remove 3 of the 4 rubbers.

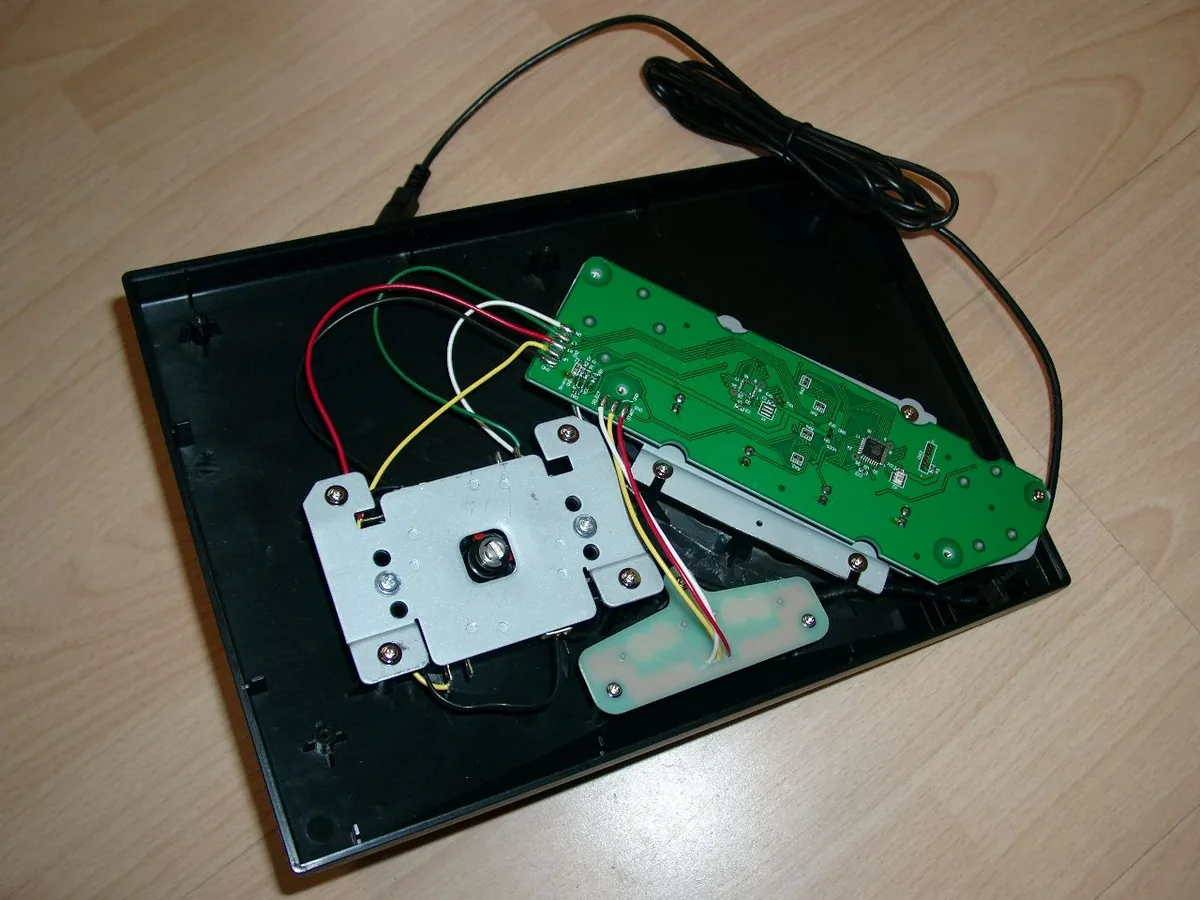

first look at mainboard
first look at mainboard

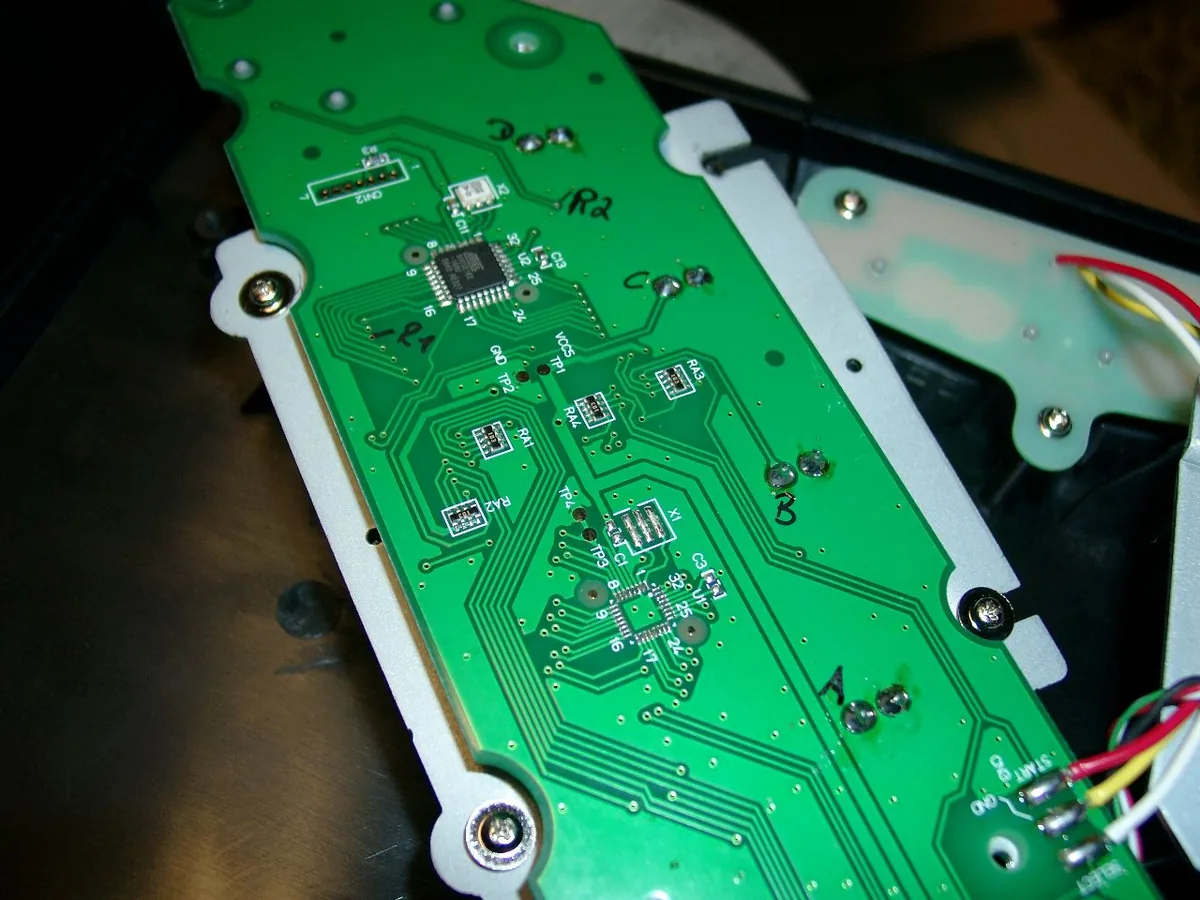

checking buttons a,b,c,d,e,f
checking buttons a,b,c,d,e,f

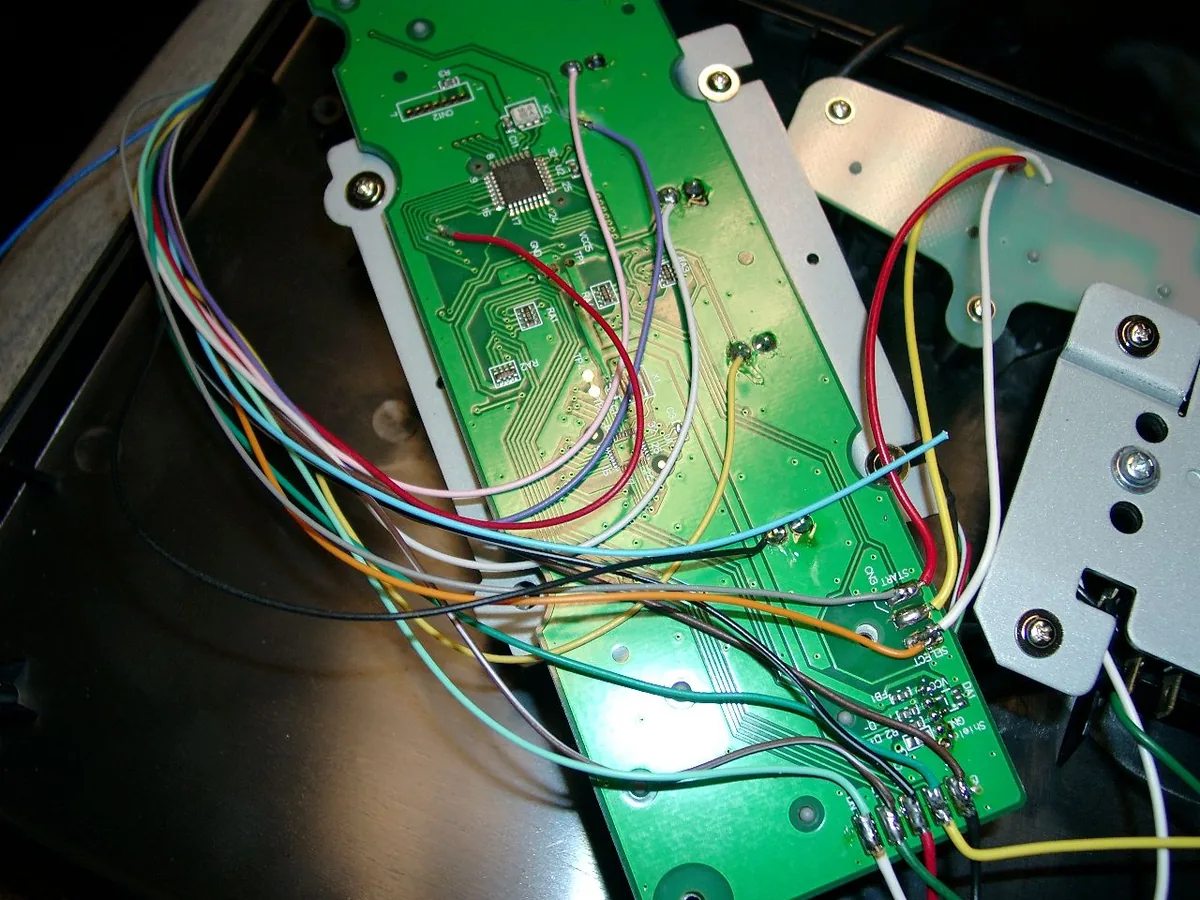

wiring with neogeo cable
wiring with neogeo cable

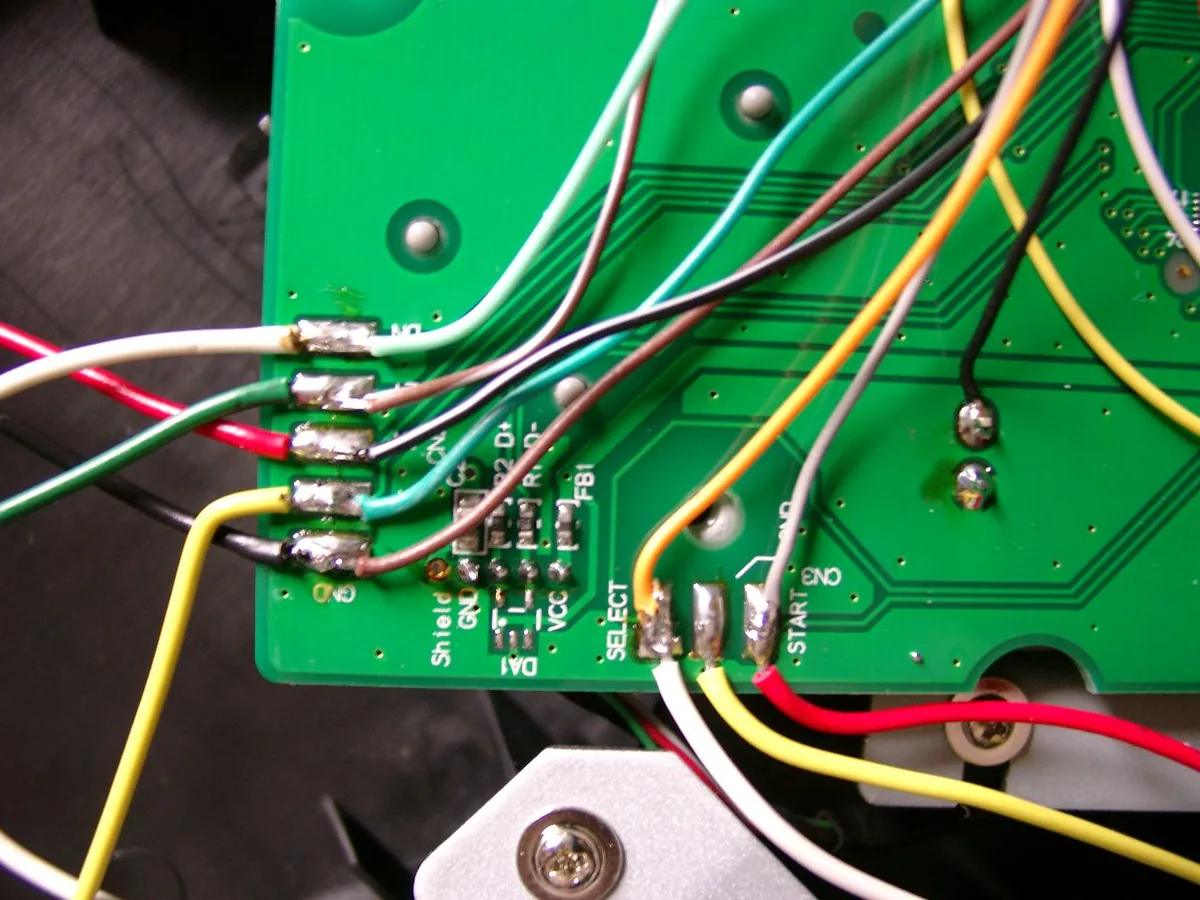

zomed view, the pins for direction and select,start are marked on the mainboard
zoomed view, the pins for direction and select,start are marked on the mainboard

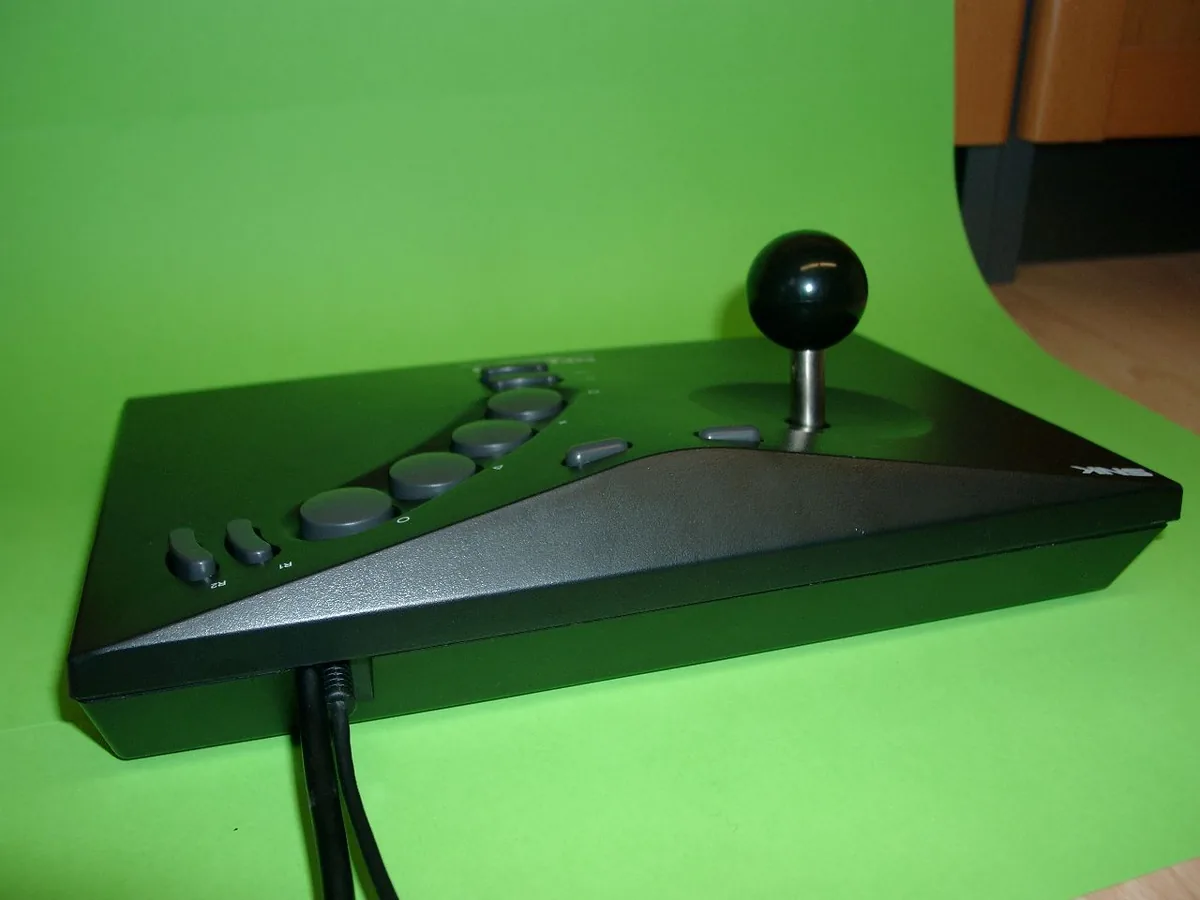

cutting pvc to get both cable out of the neogeostick
cutting pvc to get both cable out of the neogeostick

Here you can see the NeoGeo Connector:

1 GND brown
2 Feuer E (5) red
3 Select (Coin) orange
4 Feuer D (4) pink
5 Feuer B (2) yellow
6 Rechts darkgreen
7 Unten lightgreen
8 5 V darkblue
9 N.C. lightblue
10 Feuer F (6) purple
11 Start grey
12 Feuer C (3) white
13 Feuer A (1) black
14 Links brown/white
15 Oben black/white
If you didn't want to see 2 cables out of the neogeostick you can make use of a Sub-D 15 connector and a separate cable.
