The Perfect Tapto Mister fpga Console
Hi Folks,
thanks to an inspiration of BedroomNinja talking about a more PC-Engine like Tapto Reader 3D Printing Design - my idea was born to make the ultimative Perfect Tapto Mister Unit.

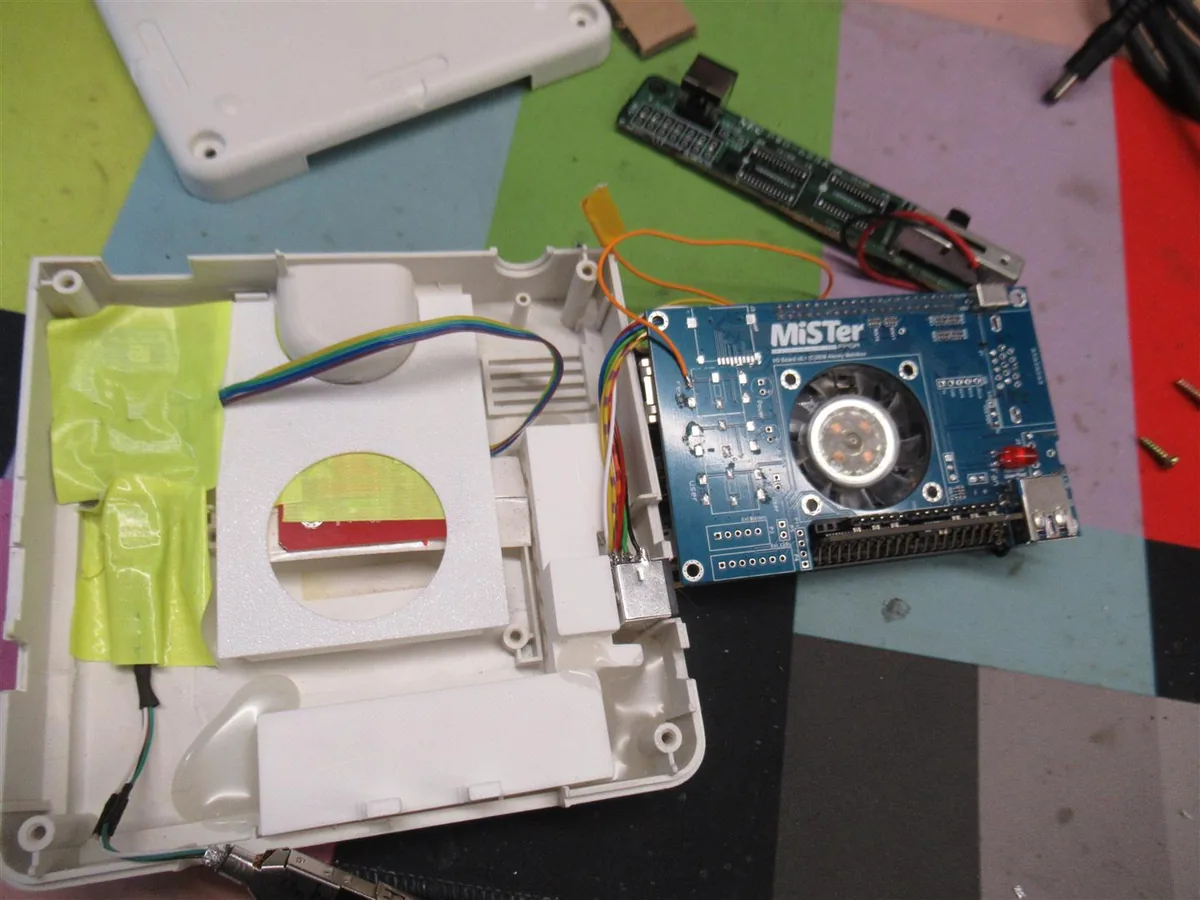

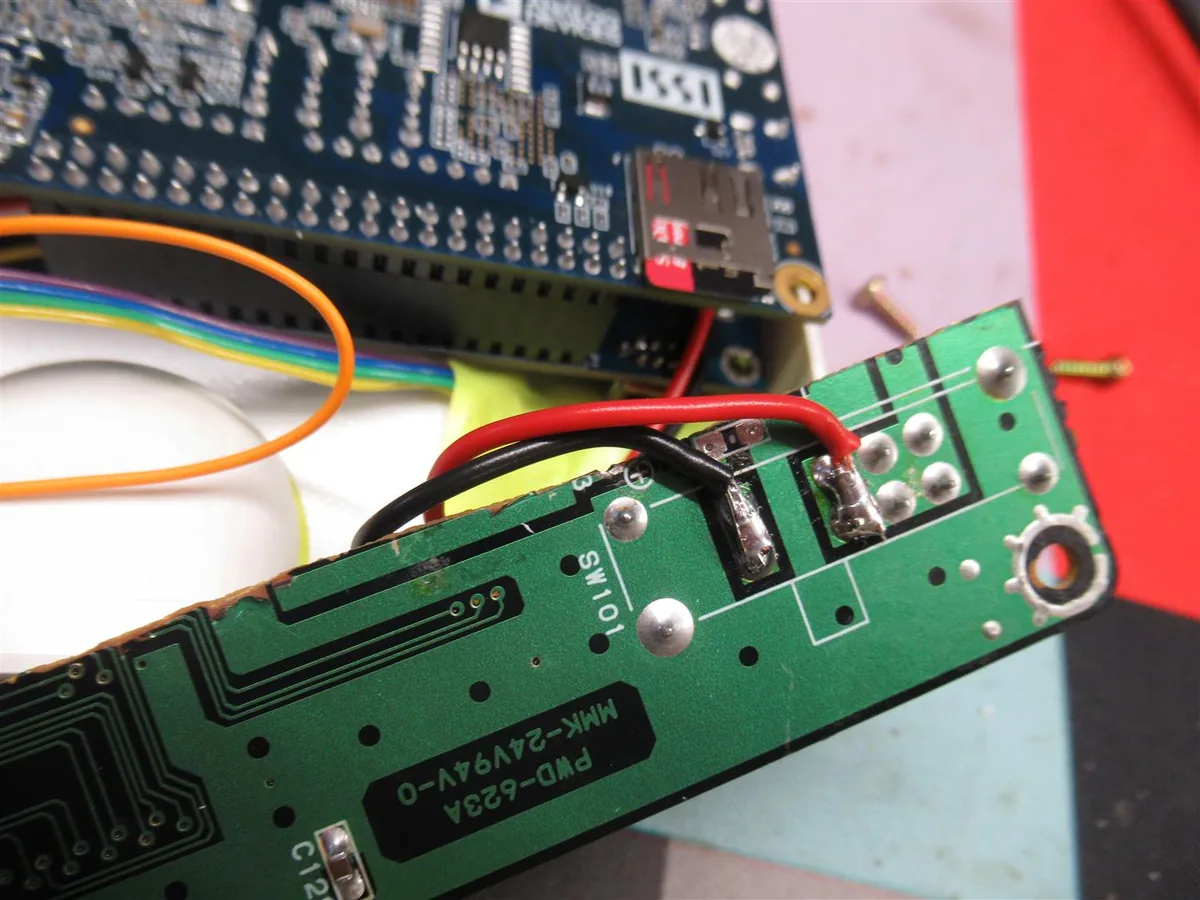

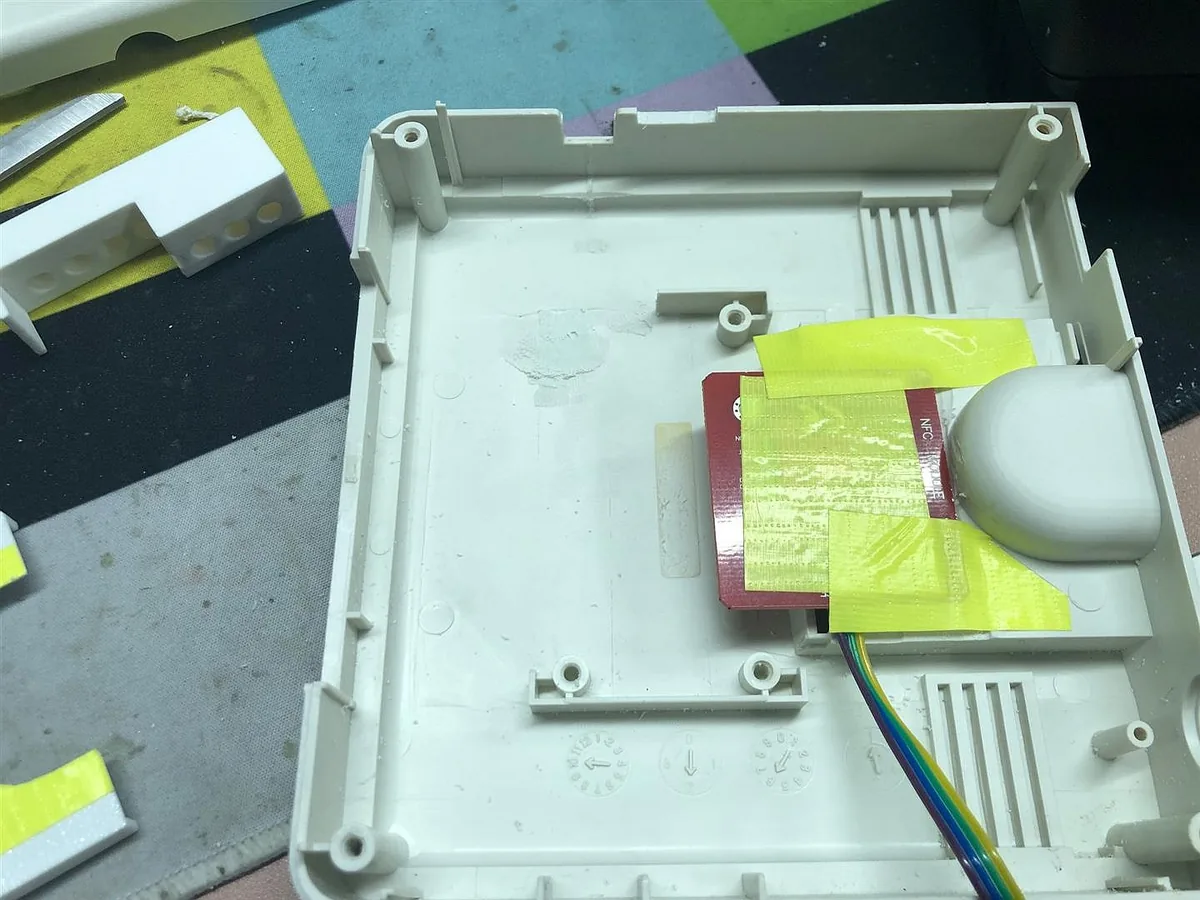

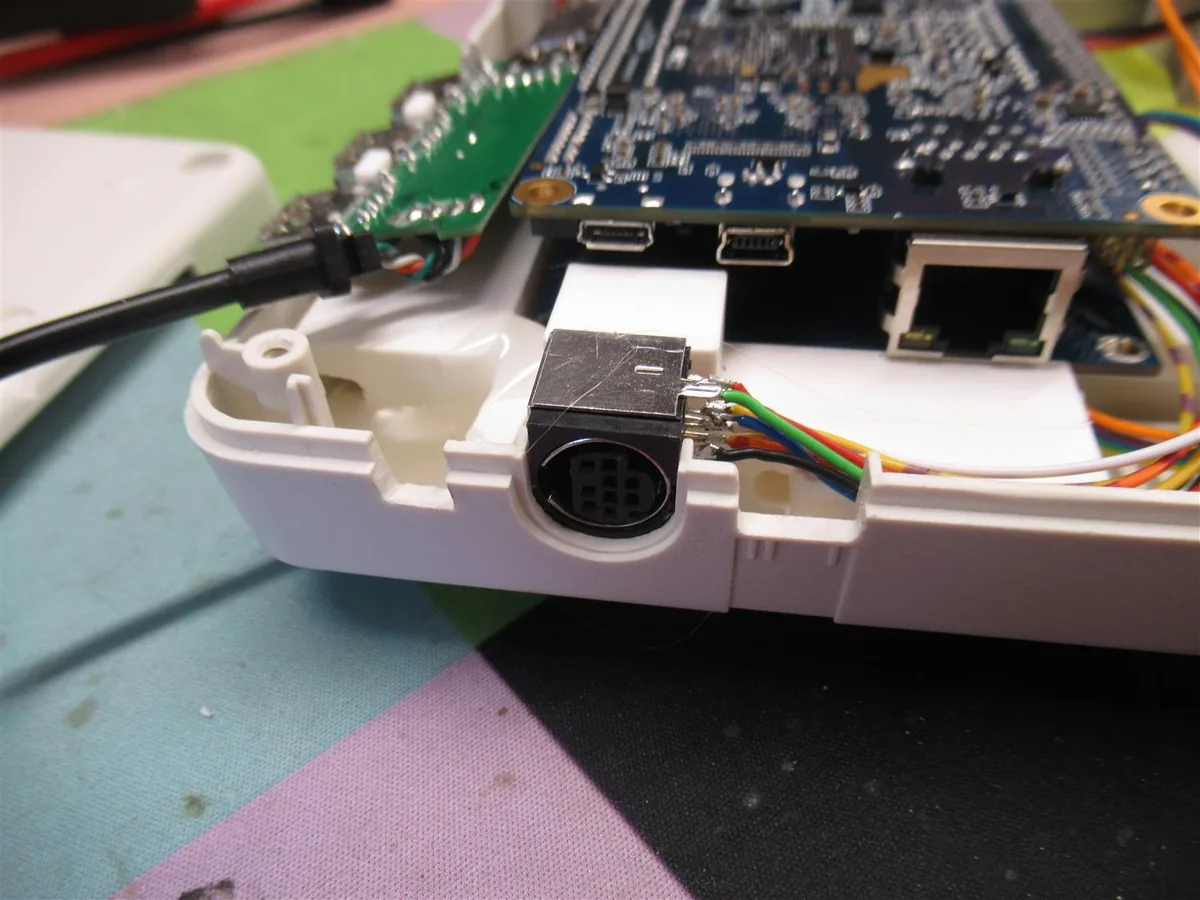

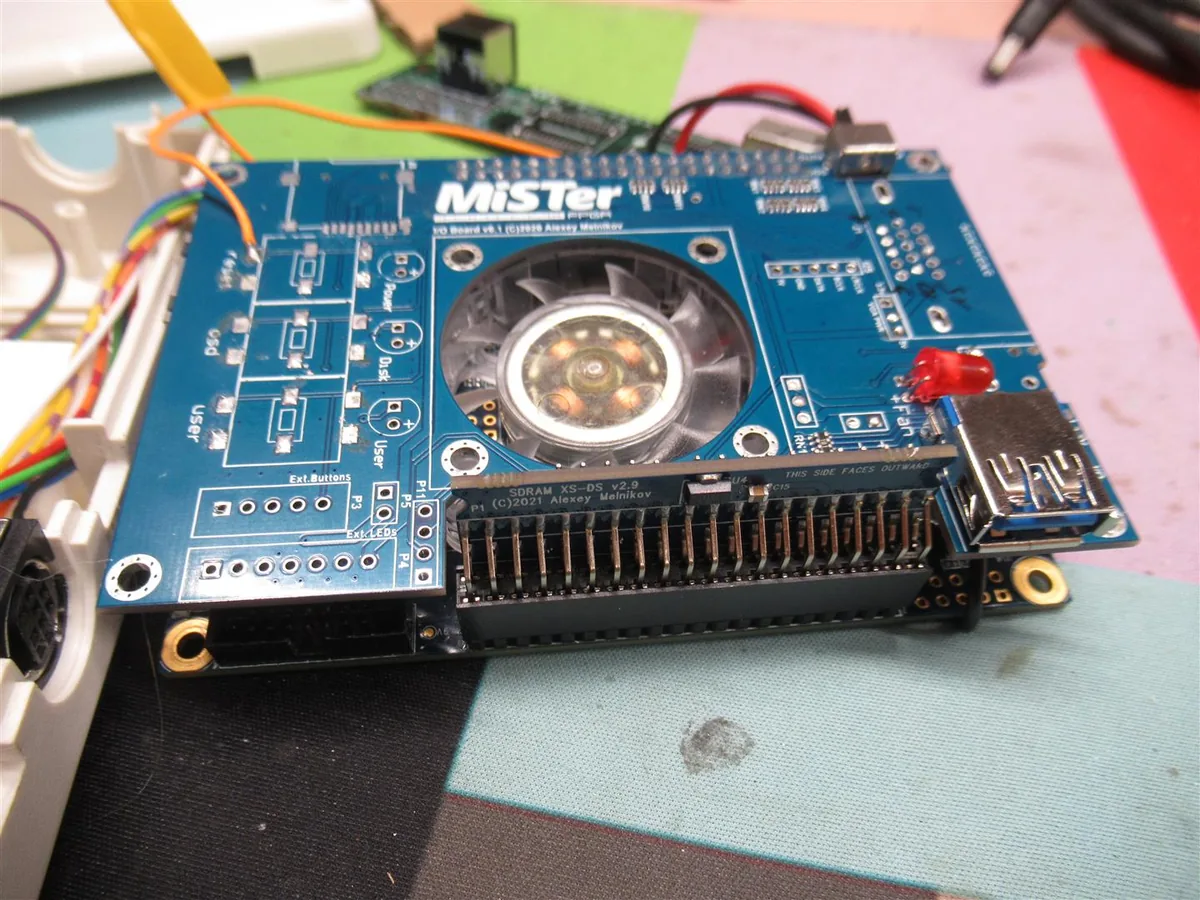

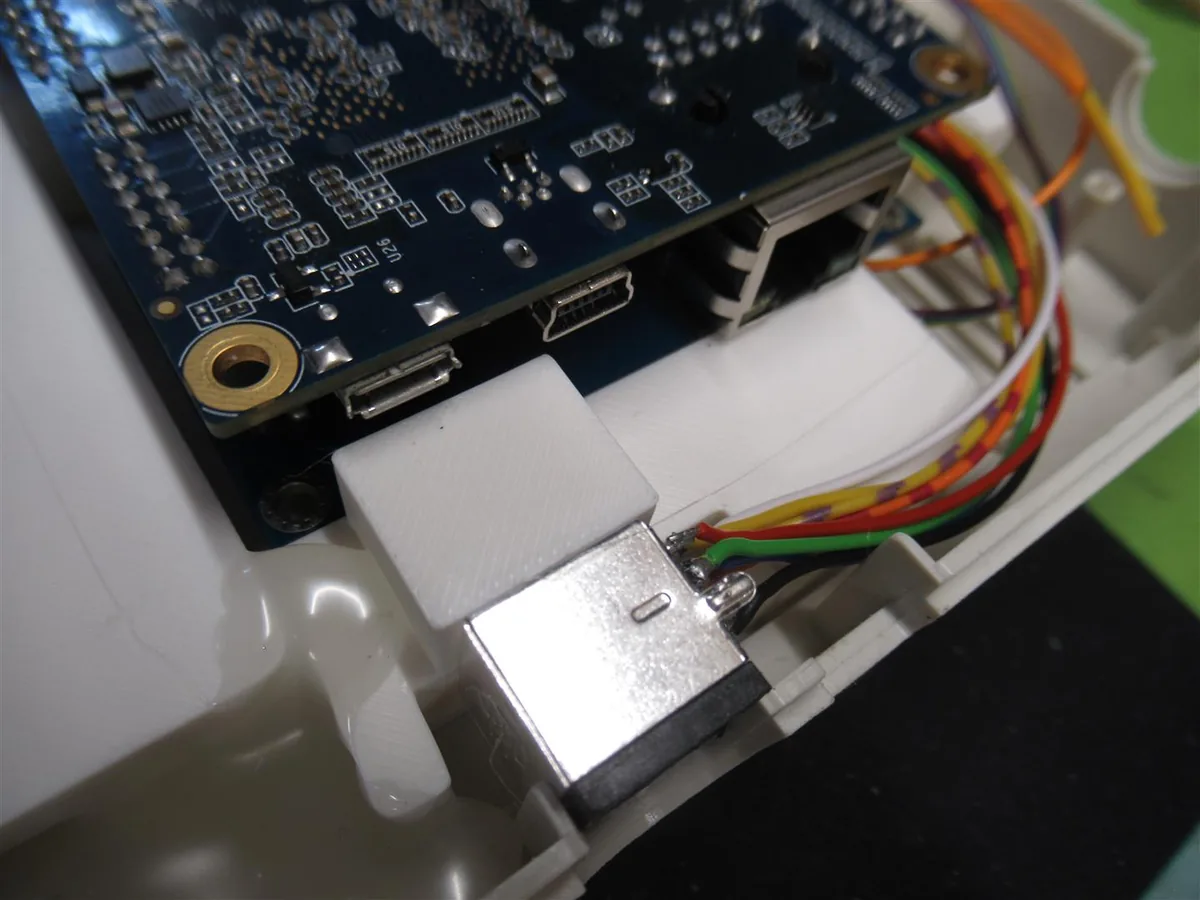

I used a broken original PC-Engine and put a DE10 Nano including a RGB-Analog Board into it. After some triming and some 3D printed peaces it fits into a PC-Engine. In between of the I/O board and the DE10 Nano I put a Fan for cooling. I ripped of some parts of the Analog I/O Board used parts from the original PC Engine PCB for power Button and the PC-Engine Controller Port (waiting for a snac adapter). I used a Mini Din 8pin SMD2 Pin Compatible Port for analog RGB-Output.

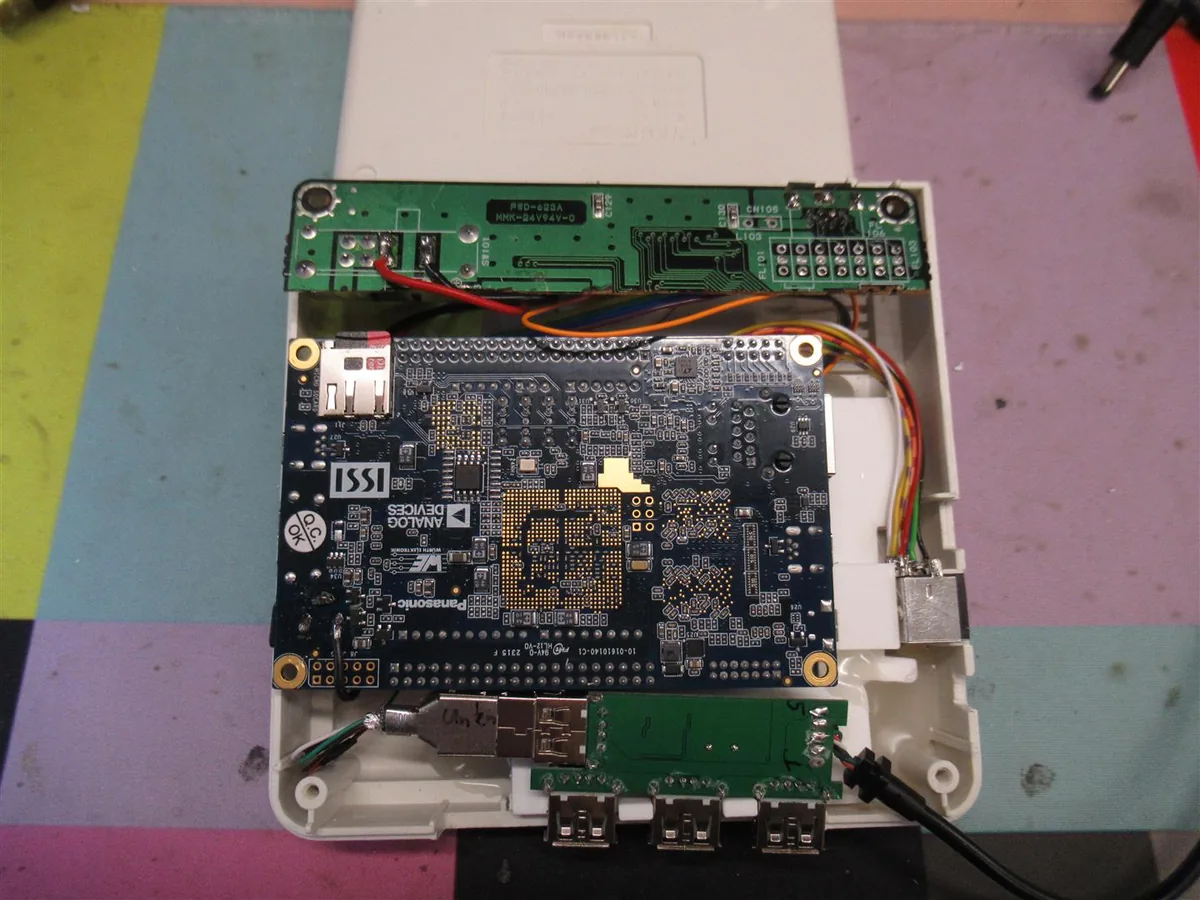

Put a 4 Port OTG USB Hub inside. a tapto Reader and voila. Here we have it: One to rule and play them all ;-)
For reference and thanks for the great tapto Project!

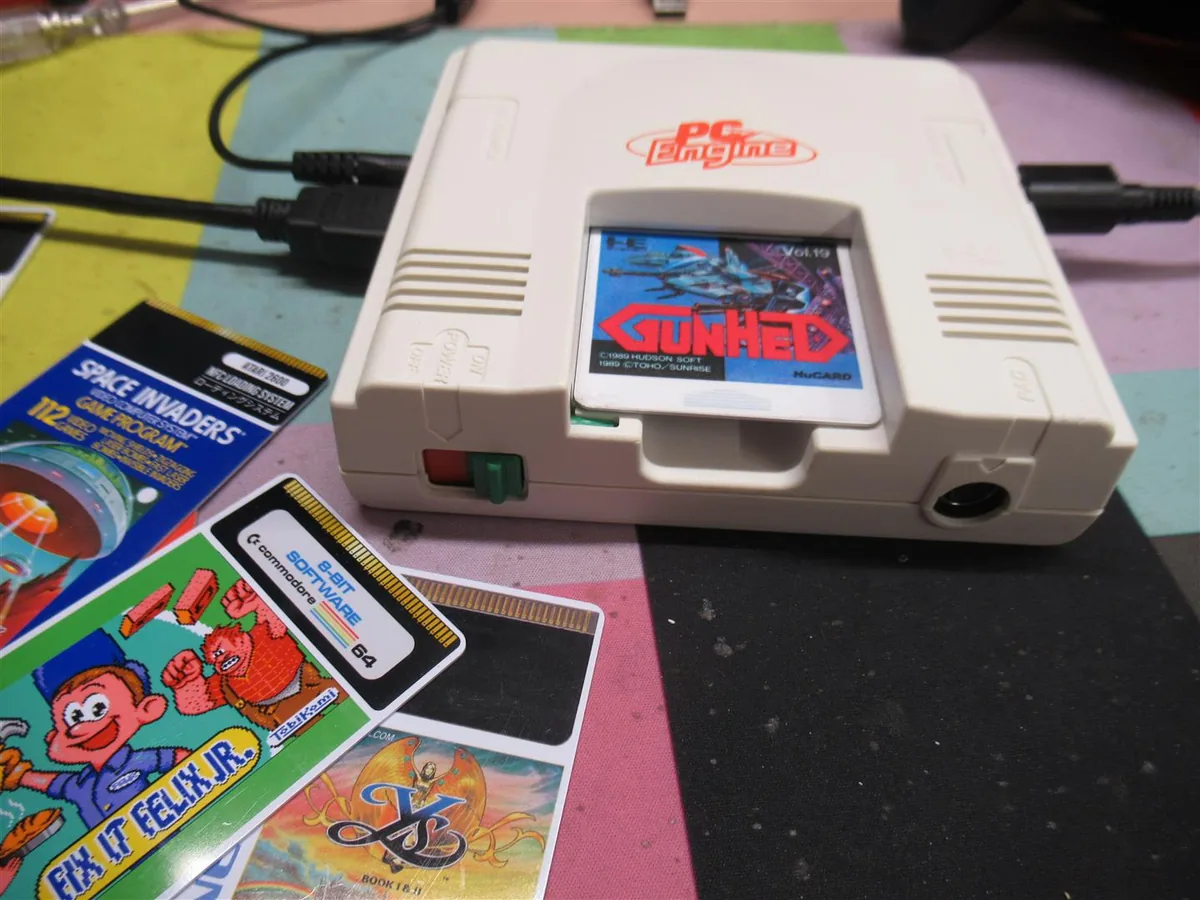

It is a quick and “dirty” hack. But from the outside it looks great and is fitting for my application. Here are some pics from inside for inspiration…
