Ultimate PC Engine Super Grafx

One to rule them all. Flagship of the PC-Engine Fleet -The Supergrafx.
A customer asked me if I can put a SSDS3 inside a Super Grafx and I loved the idea :-)

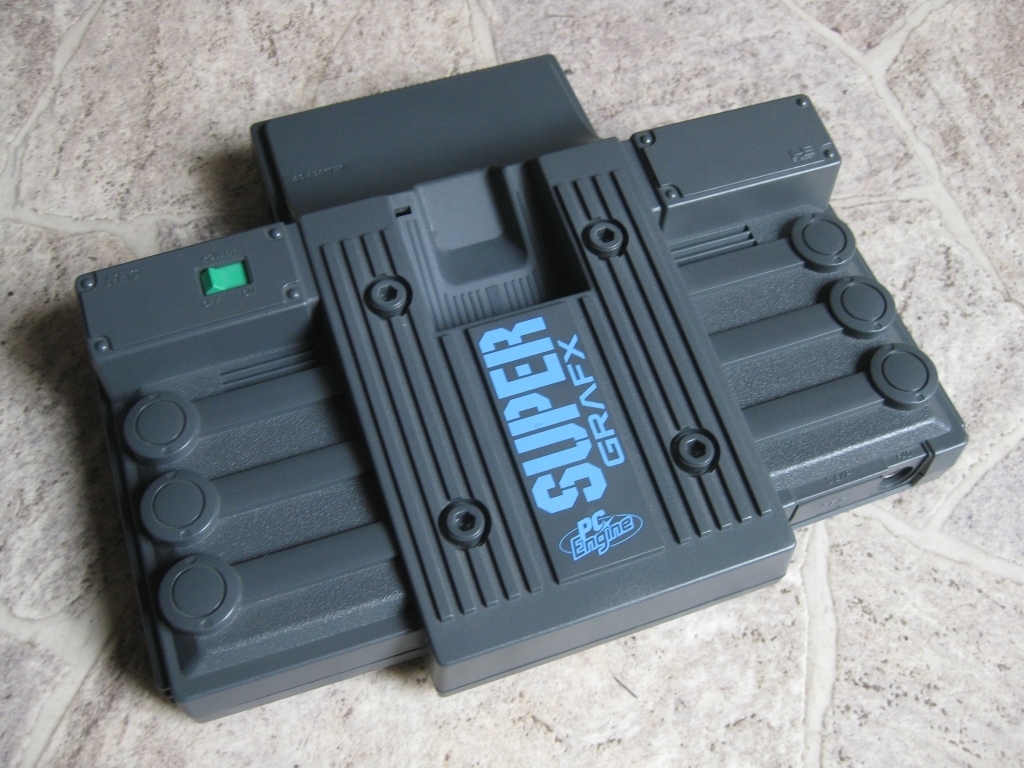

SuperGrafx2
It holds enough space to put a complete SuperSDSystem3 inside.
Now its possible to have the complete PC Engine Software Library including all CDs in one unit and it looks like stock level.

Removing the original Extension Bus makes it easier to put all the wires to the SuperSDSystem 3.

SuperGrafx9

SuperGrafx8

SuperGrafx7

A lot of wires needed

SuperGrafx3

testing with original RGB Output from the SuperSDSystem3

SuperGrafx6

Removing the original DIN A/V Connetor and replacing with a DIN 8.1 to make RGB
Output via the original A/V Port

SuperGrafx5

a shieded cable to the A/V Port

SuperGrafx4

and with the cover on the backside you see „nothing“.

SuperGrafx1

We call it SuperSDSystem3 inside ;-)
