Hi Folks,
here you can find some pictures of the rotating parts needed to make the retroarcade turnable.

he build in turning PCB is capable to turn the screen via one signal
on = turn to vertical
off = turn to horizontal

I handle it via a a conductor and a keyboardencoder. Here I am using the led for SCR to output the signal

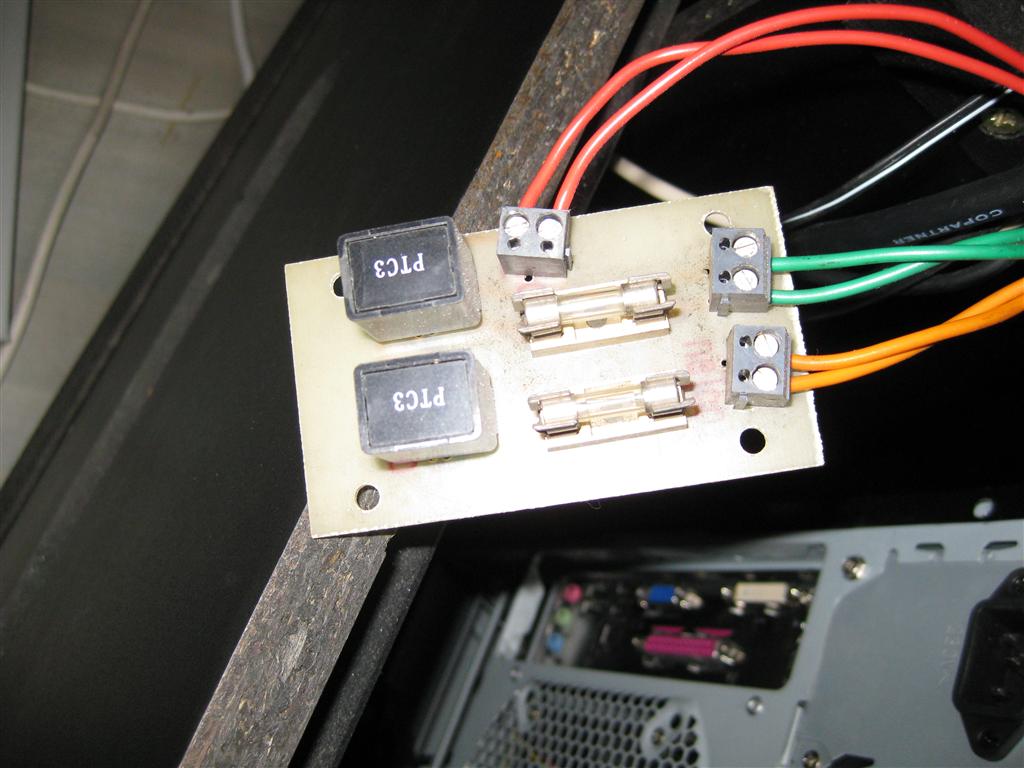

This PCB makes the degauss

powered with 230V  (Europe) and with the help of  the two PTCs

Here you see the rotating mechanisem from backsite (not much)
