AimTrak for Beretta gun

Mittwoch, Oktober 21st, 2009

I like Beretta Guns, but until now there was no way to use them with Arcade Cabs.

A month ago ultimarc give us a new product called AimTrak. It is like the Wii Remote with a Camera inside and a Sensorbar at the top of screen.

We have some good old BerettaGuns left for XBOX1 and I ripped of original stuff to make them working with AimTrak and my Arcade Cab.

The procedure tooks 3-4h of work *puh*

Here you can find the gun

Here you can find the AimTrak

Little Video

I tried it at my arcade cabinet with a crt put the senorsar in top of the screen and it works absolutly *great* Fun ONLY

Here are some pictures of the progress:

aimtrak_teaser640x400

good old Thrustmaster Beretta Gun

good old Thrustmaster Beretta Gun

"Sensorbar"

"Sensorbar"

The Sensorbar only need 5V powersupply. So it is connected to a USB Port for powering.

First 2 screws

First 2 screws

Opening Part is easy

First 2 screws

First 2 screws

First 2 screws

First 2 screws

First 2 screws

First 2 screws

good position of the B-Button downside

First 2 screws

First 2 screws

First 2 screws

First 2 screws

First 2 screws

First 2 screws

First 2 screws

First 2 screws

First 2 screws

First 2 screws

original photoeye

aimtrak11

for fitting into the beretta it was neccacary to reduce the size of the AimTrak

comparing original size and reduced / Wires

comparing original size and reduced / Wires

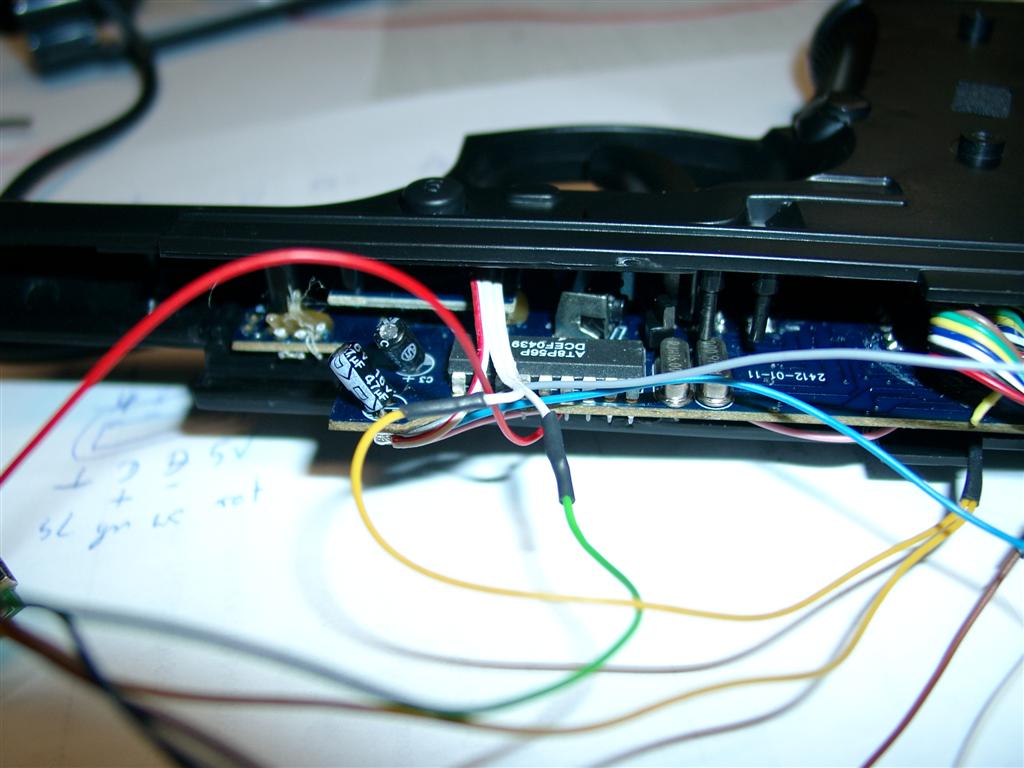

And do some rewiring

Wiring including 5 Buttons.

Fire, Reload B, Reload A, back, and start
The original AimTrak can use 2 Buttons with a connector.

There are 5 more if you can solder

I used this device to cut off the pcb

I used this device to cut off the pcb

rewiring buttons a,b @ side of gun

rewiring buttons a,b @ side of gun

Wiring Button A, B

First 2 screws

First 2 screws

Wiring back and Start for use of Coins, and Start/Continue

First 2 screws

First 2 screws

First 2 screws

First 2 screws

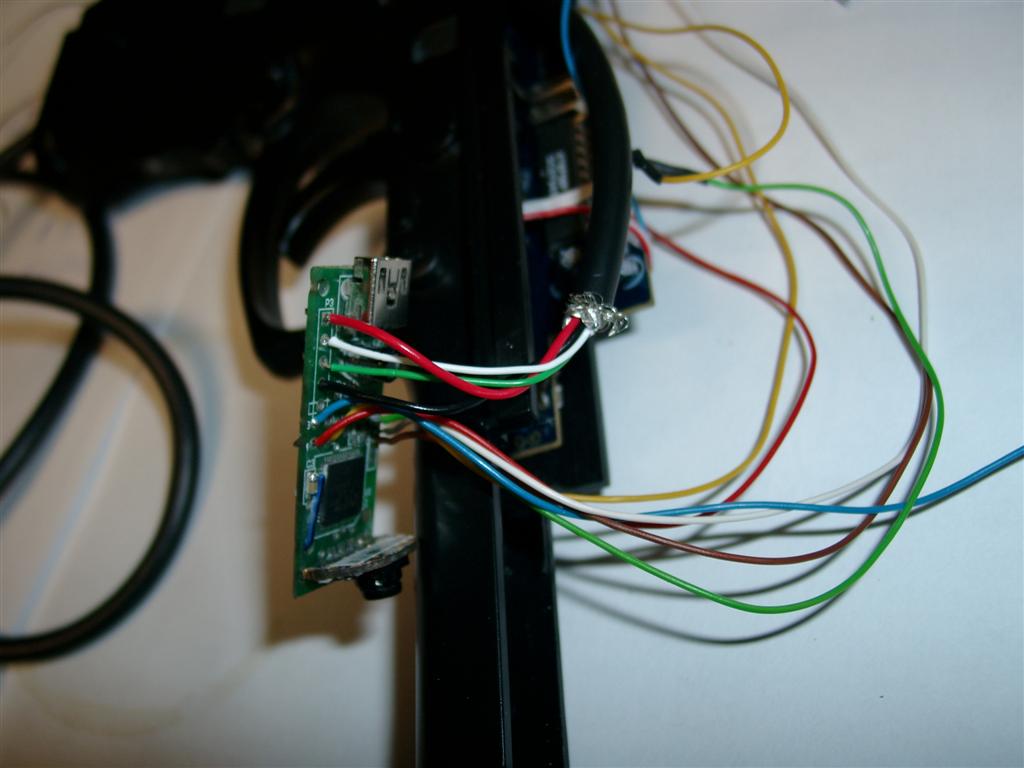

I make use of a 3m USB Cable and solderd it directly to the AimTrak

First 2 screws

First 2 screws

Here we go

First 2 screws

First 2 screws

In front you can see the new „eye“
