Balltop milky white with RGB-LED

Donnerstag, April 29th, 2010

today I received the balltop for my Sanwa JLF-TP-8YT Stick.

Here you can see a milky white balltop 37,5mm diameter with 6mm insert for use in arcadesticks.
You will find a RGB-Led inside for make all colours you wish

On the left site you will see a standard red balltop.

In the middle the milky one, right the milky one with LED on:

balltop_milky_blue2

balltop_milky_blue1

balltop_milky_green

Video

Saturn switchless Mod VA0 PAL Mainboard

Mittwoch, April 28th, 2010

today I done the switchless mod for a PAL Mainboard.
Its the third different mainboard i looked at.

Mainboard PC BD SATURN MAIN VA0 Pal

sat_VA0_pal_1

At the solder Side you will find some Jumper from JP 6 to JP 13

cut the three circuits at Jumper JP7,JP10,JP12 for Language preparation

sat_VA0_pal_3

remove Jumper 2 (50Hz, 60Hz switching)

Wire PIC like shown at the picture:

sat_VA0_pal_2

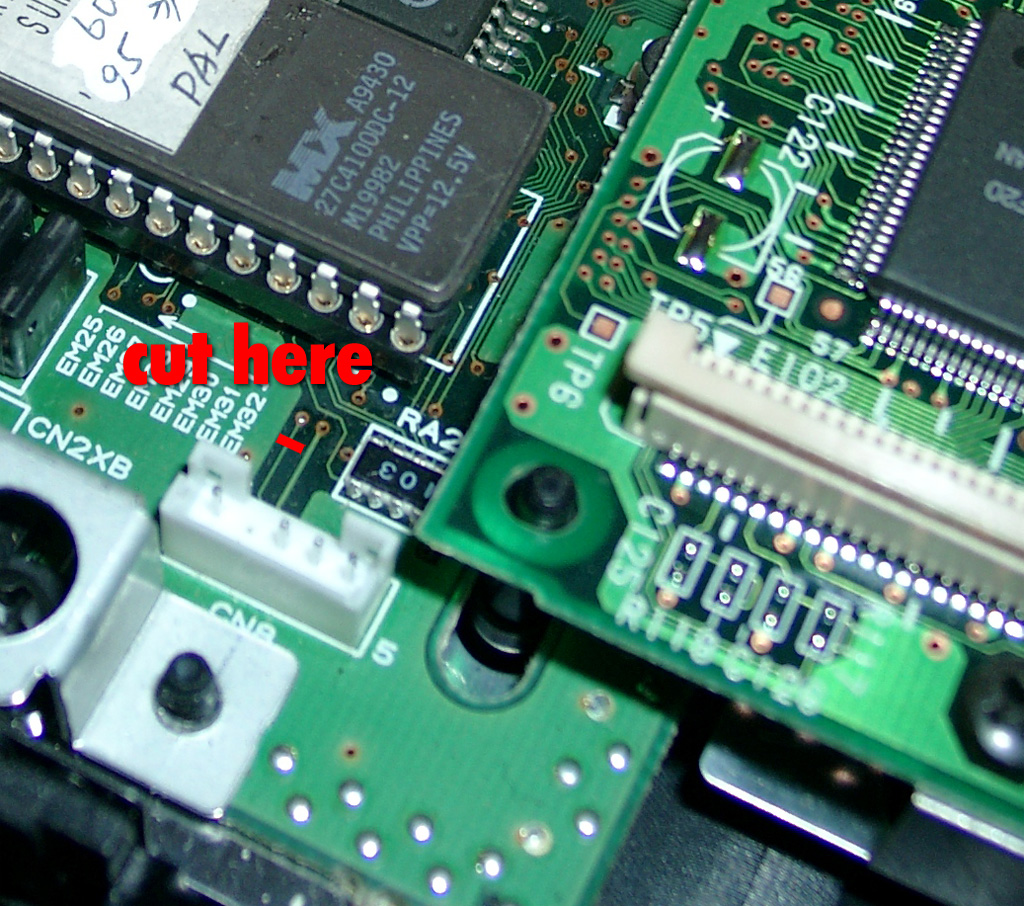

For make the Reset Button work, you have to cut this circuit on the parts site of the mainboard:

sat_VA0_pal_4

Remove the LED PCB. It holds a 5x2mm square LED.

Replace it by a Duo LED and use some glue

Left red wire, middle GROUND (take it from the mainboard), right green wire.

sat_VA0_pal_5

sat_VA0_pal_6

blue Power LED for NES

Mittwoch, April 28th, 2010

today I done a LED mod for a NES.
Its easy, the most difficulty is to open and remove all screws.
You must remove the mainboard to get the Power LED PCB.
Remove the original 5mm LED and replace with a color you like.
Look here:
nes_blue_1

nes_blue_2

nes_blue_3

Sega Master System II switchless Mod

Dienstag, April 27th, 2010

Today I modded a Sega Master System II.

You can change between 50/60Hz via the „Pause“ Button.

The normal function of the pause is still working if you press it a very short time.

For working with sebs switchless mod, I done some modification on the code.

Here you can download the code:  switchless MasterSystem Code

a) make use of common anode RGB-LEDs for brighter Leds

b) reduce the code to two modes 50 and 60Hz.

Here you can see the solder site of the SMS2 Unit. You have to cut the Pause Button Signal:

sms_2

for making 50 and 60 Hz switching work you have to cut Pin 57 of

Sega IC 315-5246 (64 Pins):

sms2_3

Here you can see the wiring of the PIC16F630

sms2_4

For Displaying the LED I put it under the Pause Button.

From the top its not so bright but it works:

sms2_1

english video

german Video

Furious Controller Ikaruga Custom Design

Dienstag, April 27th, 2010

today we build a Furious Controller with a custom design including lightning of the buttons.

The Stick Ball is on every time the controller is pluged into a Videogame Console.

If you press ab button the button will light on as long as you press it.

ikaruga

ikaruga_2

NeoGeo AES switchless MOD

Dienstag, April 20th, 2010

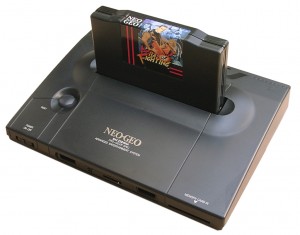

I am using a NEOGEO AES3-5 unit for the switchless mod today

neogeo

Rom Part: piggyback

I added a second Bios from Razoola the UNIBIOS. You can get it at www.wolfsoft.de or unibios.free.fr

Here you can find a good tutorial for piggyback the UNIBIOS http://www.mmmonkey.co.uk/

First you have cut pin 2 of the onboard Bio and lift the pin up:

neogeo_duo_1

use a DIP 40 socket to make a future replacement easier

Lift up pin 2 of the mainboard and pin 2 of the DIP-socket

neogeo_duo_2

The PIC 16F630 Part

As usually I am using the switchless mod from seb http://seb.riot.org/saturnmod/

And the inspiration from Pete Grimes Site: http://www.mmmonkey.co.uk/

This time I can’t use sebs pic code „out of the box“.
I have done some lite modifications to the code.
50/60Hz switching is inverted at the NeoGeo and NeoGeo can’t switch between 50/60 Hz during operation. So it is needed to do a reset after switching 50/60Hz.

The Country Mode must reduced from 3 to 2 and I have done some slight changes for make a RGB-LED working. The difference at the RGB-LED it is wired common Anode

You will find the source code here.

PIC 16F630 Wiring

red wire PIC Pin 1 (5V) taken from IC HC04 Pin 14

black wire PIC Pin 14 (GND) taken from IC HC04 Pin 7

red wire PIC Pin 5 to RGB-LED (Resistor 150Ohm)

blue wire PIC Pin 6 to RGB-LED (Resistor 150Ohm)

yellow wire PIC Pin 8 to lifted Pin 2 of the DIP-socket

blue wire PIC Pin 10 to lifted Pin 2 of the onboard Bios

white wire PIC Pin 11 to solder site of mainboard (Reset Signal)

pink wire PIC Pin 12 to PAL Jumper right site (LSPC2-A2 TSOP Pin 64)

grey wire PIC Pin 13 to solder site of mainboard (Reset Button)

remove the pal jumper, solder pink to the right site of the jumper

(left site of PAL1 5V, right site to LSPC2-A2 TSOP Pin 64 for 50/60Hz definition)

neogeo_duo_4

Here you can see the lifted pins

neogeo_duo_5

on the solder site you have to cut one circuit (see red marked area) and solder grey and white

(to split the original Reset Button Signal and make use of the Reset Button via the PIC)

neogeo5

complete mainboard top site
The black wire at the RGB-Led under the Reset Buttons is carrying 5V and taken from a nearby IC

neogeo_duo_6

Now you have to add the RGB Led to the power switch, with help of a dremel.

I done it the same way as pete from www.mmmonkey.co.uk

For more power I am using now a RGB-Led with black wire common Anode 5V

neogeo_duo_3

rgb-led

english video

german Video

Worldwide First Sega CD-X, REAL multi-mega switchless mod

Freitag, April 16th, 2010

This mod has been a long time in my head and I am happy to make it become real now :-)

The Sega CD-X is a little great unit, you can take with you as a CD-Walkman and it includes a complete Sega Genesis and a Sega CD in one unit.

After done the previous modding of Genesis 2 in combination with Sega CD 2 and 32X I done the same for this little beauty.

We can offer you the complete modding, at our website: www.wolfsoft.de

mm1

The shielding carries GND for the Mainboard. It will not work without it. For testing you can use a wire like the following pictures:

mm2

The battery have to be replaced its a solder Version of ML 2016 (3V) Li-AL Rechargeable Batterie.
Modell: ML2016-LF (Maxell)

http://datasheet.octopart.com/ML-2016-T25-Maxell-datasheet-558430.pdf

mm17

After removing the shielding you can find the jumper for 50/60Hz and the Country Settings

The default for a europe unit JP3 is set and JP2. You will have to remove any jumper you will find

at JP1, JP2, JP3, JP4.

mm3

Some more Info about the Jumper Area:

The circuits are going straight to the big SEGA 315-5660 IC

Pin 46 at Sega 315-5560 -> 50/60Hz switching. GND= 50Hz and 5V = 60Hz (JP3, JP4)

Pin 107 at Sega 315-5560 -> Country settings. GND= jap. and 5V = engl. (JP1, JP2)

Now its time to make use of a PIC 16F630 with sebs Code.

red wire 5V, black wire GND, pink wire 50/60Hz, purple wire country setting

mm4

Now we have to take the 2nd Mainboard (CD-Area). We have to mod the Display with two Duo Leds. First you have to remove the shielding.

mm5

Desolder the Display Unit.

mm6

mm7

  • Remove the two original LEDs.
  • Use some tape and double sided adhesive tape
  • The Center of the 3 pins of the DUO-LED is GND. Solder both to the GND Area of the mainbord
    (I used some fiberglas pencil)
  • make space for the legs of the LED at the PVC of the Disyplay

mm8

use four 220Ohm resistors and head shrink tube to avoide short curcuit.

mm9

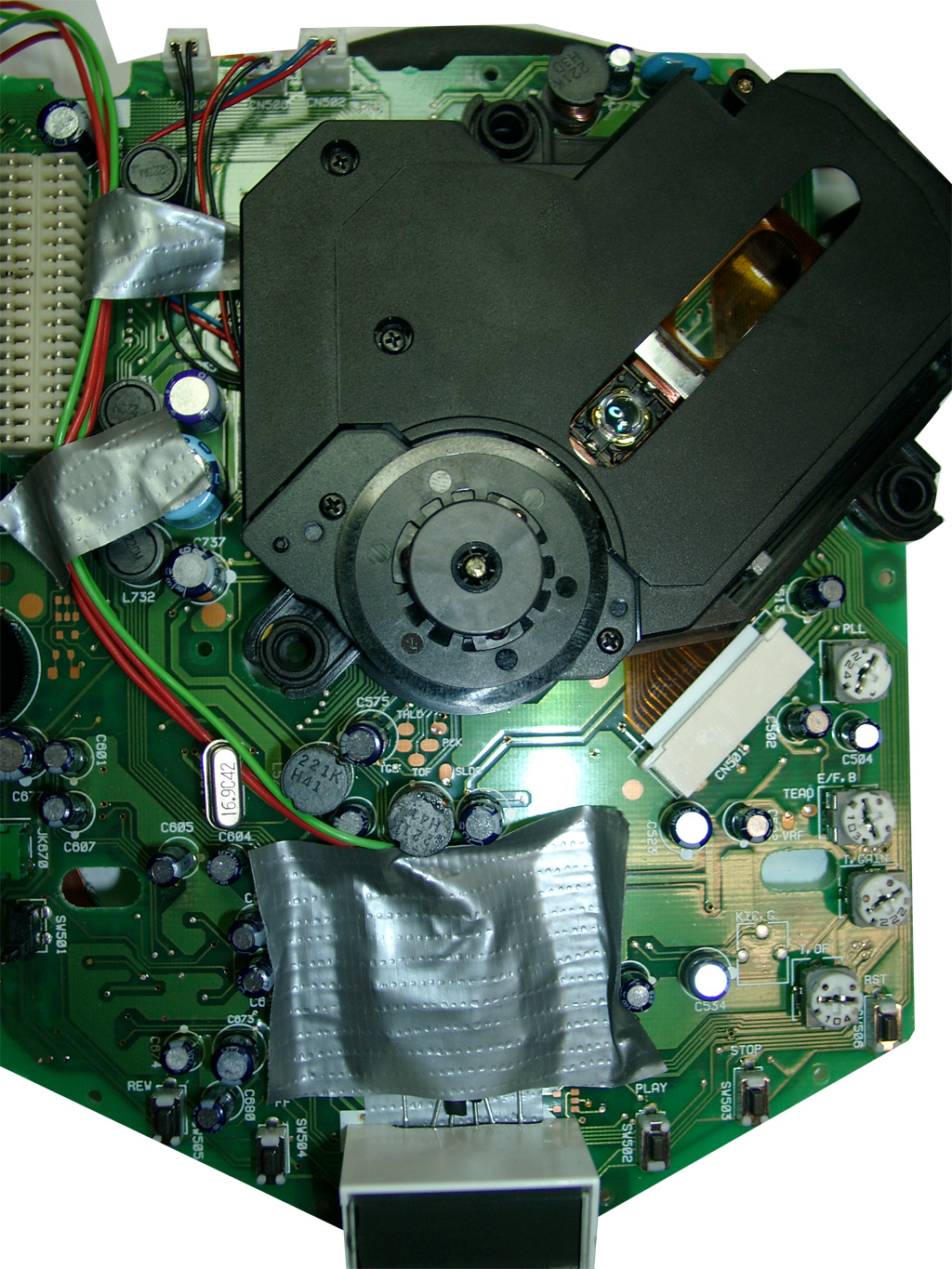

Here you can see the routing of the 4 wires bounded with some tape.

mm10

Now it is time to get the „power“ over the reset button. It is placed on the CD-Mainboard. Lucky the Signal is going through the 36 Pin Connector on the left site.

mm11

You will have to cut pin 11 at the outersite of the connector.

PIC Pin 13 grey is connected to the upper site. Its for the Reset switch

PIC Pin 11 white is connected to the lower site (Reset Sega 315-5660 IC Pin 78)

mm12

Rom Part – for playing Cds around the world

You are in need of a Eprom (27c2004) and burn all 3 bios Version into it. The usa, japanese and pal Version. You can select the different Bios Version via A16 (Pin 38) and A17 (Pin 39) of the Eprom.
The order is: USA-> JPN -> EUR.

You can do it by yourself. Take the CD-Bios Versions and make a byteswap each of them.

The concat the 3 Files via Windows Commandline copy

copy /B usa.bin + pal.bin + jpn.bin switchless.bin

The final goal is to get 2 wires from the 16F630 PIC to the Eprom.
Here we make use of 2 wires from the Sega Expansionport.

PIC 8 /Eprom 38

PIC 10 /Eprom 39

EUR

0

1

JPN

1

0

USA

0

0

First you have to disable to onboard bios. Desolder PIN 2 (CS) of the onboard ROM and lift the pin up. Solder a red wire from the lifted Pin 2 of the ROM to Pin 40 (5V) of the ROM.

mm13

Now its time to prepare 38 wires each 5-6 cm and do some soldering ;-)

mm14

Wire blue and yellow as you see on the picture. This to wires will do the Bios selection:

mm19

red and green coming from the 5mm Duo-Leds. Solder both parallel to PIN 5,6 of the PIC

mm20

Adding Sega 32X Support (optional)

The pink wire to the AV-Port is optional, only necassary for 32X support

You will have to cut the red marked circuit and solder a pink wire to Pin 6 of the AV Port

We will disable the Mono-Audio for this function. This will not be a problem, because STEREO-Audio is still working. (Who needs mono ?)

On the right picture you can see the right routing for the wire:

mm18

To prevent short circuits use tape on the left site of the CD-X.
Here you can see the routing of the LED wires.

Make sure no red/green wire is nearby or inbetween of the 36 PIN connector between the two mainboards:

mm21

german:

you can see the different colors:

http://www.youtube.com/watch?v=gaQCTsi3c6c

Rare Quadro Magnum Project

Dienstag, April 13th, 2010

Hi Folks,

after polish the good old Jumbo Quadro Games Cabinet, I found a bigger one a rare cabinet called: Quadro Magnum.

There are different advantages over the Jumbo Cabinet:

a) I can use a digital Multisync CRT-Monitor like the Wells-Gardner 27 Zoll instead of the analog 25 Zoll Multisync CRTs

b) the controlpanel is really big, so I can make use of more toys :-)

c) its a sitdown

d) a negative point is the width is around 83cm and a lot of door are only 80 cm :-(

e) turns the screen like all Quadros via motor ;-)

It will take some time to finish this project, because its for me and I have a lot other work to do at the moment.

Here the first pictures:

magnum (1) (Large)

magnum (6) (Large)

magnum (11) (Large)

what have I done until now:

a) orderd new glasses for marquee an bezel

b) asked the panelmaker willi for a new CP

to do:

a) what is needed on this big controlpanel

1-2 trackball,

1-2 spiner, or crazy 4 spiner for games like warlords…

2-4 sticks?

analog stick?

a lot of buttons

Retroarcade lifting

Dienstag, April 13th, 2010

Thank to Alex from cologne, I got a Cinema4D Object of the Quadro Games Jumbo Arcade Cabinet. And it was time play with it,  to show whats possible to make.

Here you can see the old look:

retroArcade_Cabinet_quadro_look_1

Here some tests:

retroArcade_Cabinet_01

retroArcade_Cabinet_02

retroArcade_Cabinet_03

retroArcade_Cabinet_04

retroArcade_Cabinet_05

space_look

Virtua Boy Fixing Glitchy Displays

Dienstag, April 13th, 2010

I got a defective Virtua Boy from a customer with the Glitchy Display Error.

After a quick research i found: http://www.projectvb.com/displayfix.html

I used the Solder Method for repairing:

For removing the cable I was using a Fiber Pencil like this

and after this It was possible to resolder the pins @ 230-250Grad Celsius.

And it works, great again like the first day :-)

One little tipp: check the cable connector if its connected right at the other side.

If its inserted to much, you will get no picture from this site…
