New Custom Knightset for Medieval Madness wip

Donnerstag, Dezember 30th, 2010

For MM I found only one custom Knightset with 4 knights.
I don’t like the faces covered with complete helmet, so I am in search for some other.

I found a King that looks similar to the king of the backglass. Next I will try the same in red…

left_ramp_01

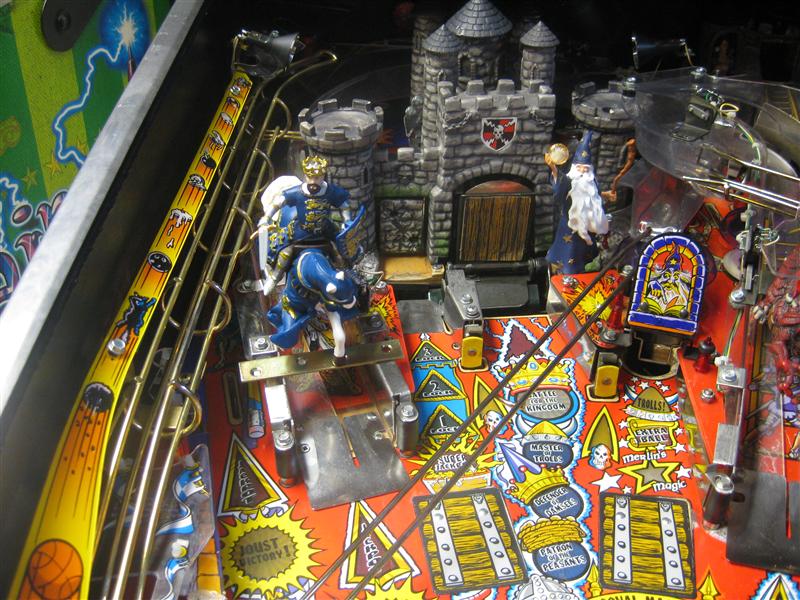

left_ramp_02

left_ramp_03

wordclock

Mittwoch, Dezember 29th, 2010

a few weeks ago I saw the one year old project of a clock with leds.

http://www.mikrocontroller.net/topic/156661#1479435

I done two for me one, with a black plexi and one with stainless steel.

After a lot of soldering and some woodwork…

wordclock (3)

clock2_border

wordclock (1)

wordclock (2)

wordclock (4)

wordclock (5)

Rebirth of the Dragon -WIP-

Mittwoch, Dezember 29th, 2010

Some weeks ago I saw a great dragon with two heads and my first thought it can work in MM…

Its time for ashes of the Dragon, now with two heads ;-)

After some drilling and cutting I the hole is big enough to put it over the lamp of the original dragon.

dragon_wip (1)

dragon_wip (12)

Here a some pictures from the first work in progress state

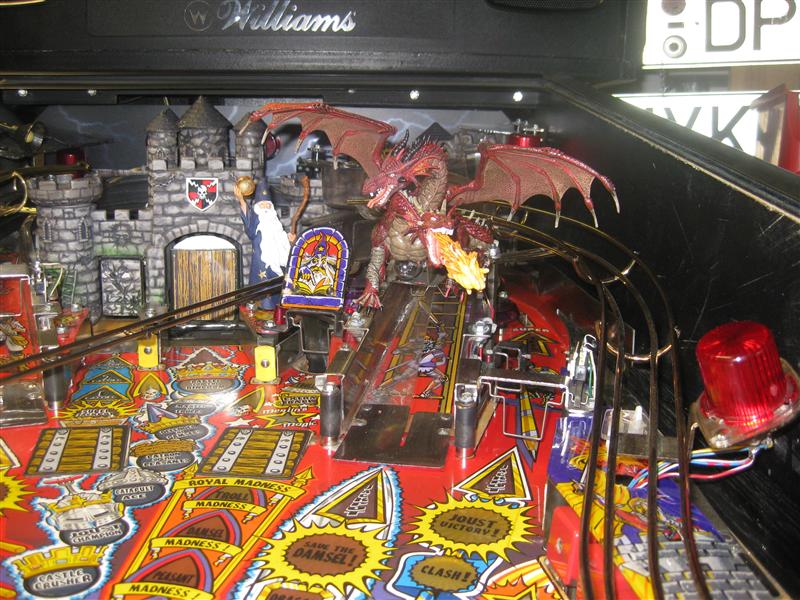

dragon_wip (2)

dragon_wip (3)

dragon_wip (4)

dragon_wip (5)

dragon_wip (6)

dragon_wip (7)

dragon_wip (8)

dragon_wip (9)

dragon_wip (10)

dragon_wip (11)

After some finetuning with a dremel, the dragon fits perfectly including the lamp to the original place of the „old“ dragon

dragon_dremel

dragon_ok_0

dragon_ok_1

with flasher lamp on under the dragon

dragon_ok_4

red flasher right down on

dragon_ok_3

Medieval Madness DIARY

Montag, Dezember 13th, 2010

After getting this great mashine. I Think its time to make a diary about the mods, repairs I done to it.

here some pictures after receiving in August 2010

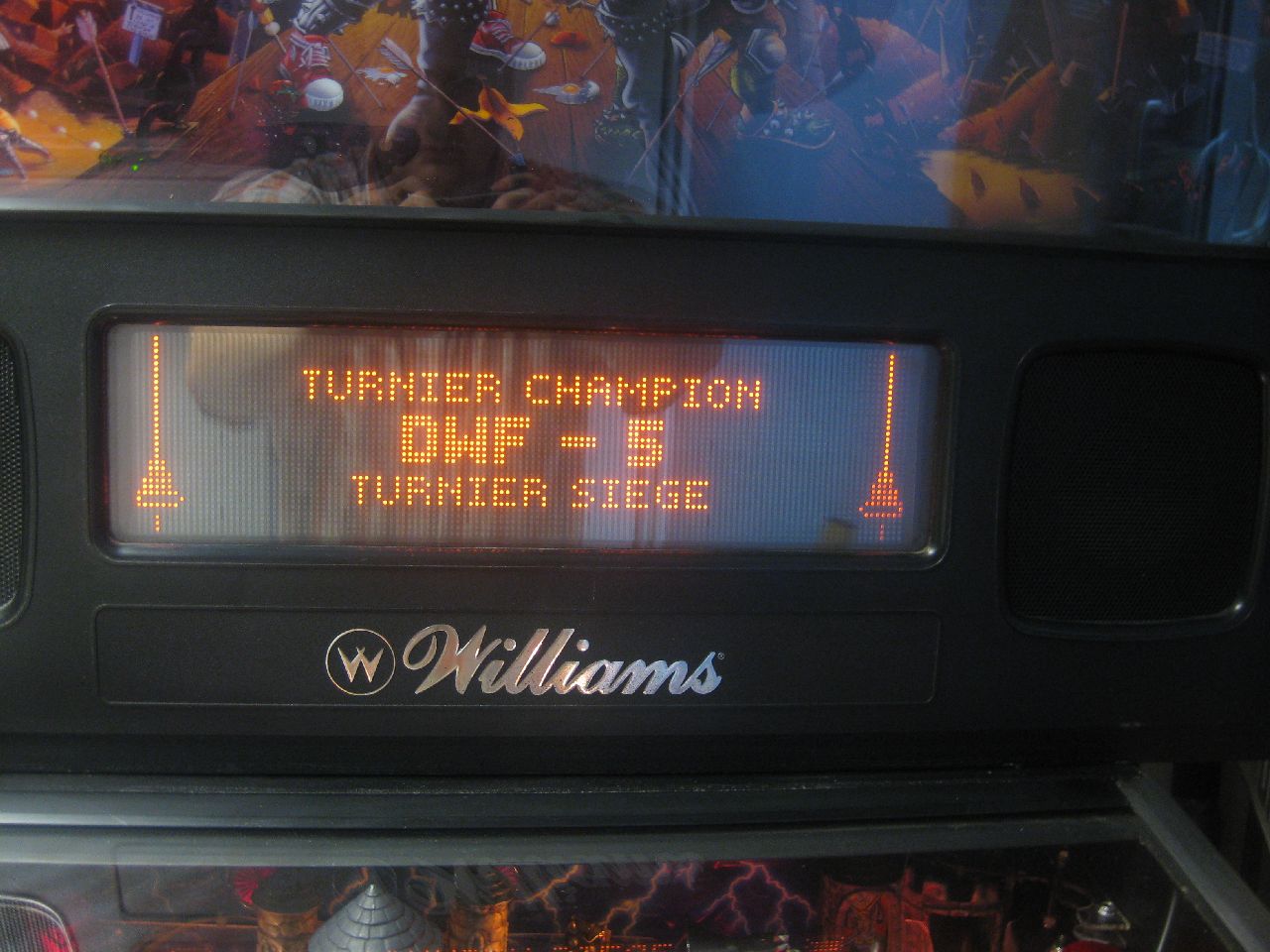

a) It works but  the DMD is right down darker

mm (57)

b) The Eprom Version is 1.0 on ipdb I found a 1.09.
d) The Drawbridge is not 100% up. Its a little bit open in the up state.

mm (39)

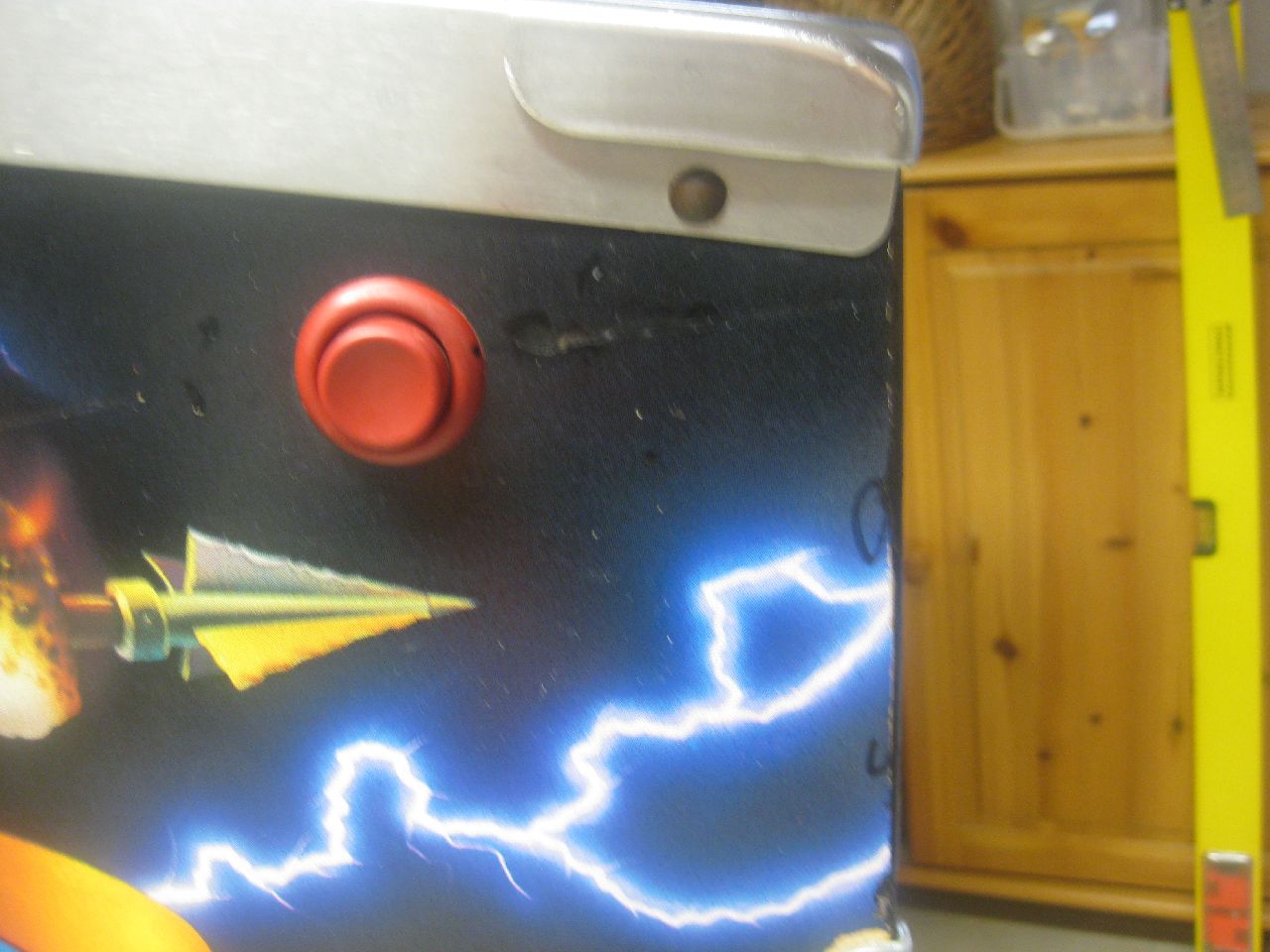

d) The Decal

is not the best some scratches where painted with a edding..

mm (14)

mm (20)

Whats this?

mm (22)

e) The playflield

can this black parts removed

mm (49)

Was macht man hier:

mm (44)

Some Infos about the Power Driver PCB Assembly

F108 ->Led 105 -> +50V solonoids

F107 (4A)-> Led 104 -> +20 V Flash Lamp Power

F106 (5A)-> Led 102 +18V DC  -> +12V DC -> Led 100

F105 (4A)  -> Led 101 +5V DC

F109 (4A)  -> Led 103 +12V unreg.
