Rotating UFO for Revenge From MARS duo color MOD

Donnerstag, März 24th, 2011

Today I got the new plastics I created to make the 8 holes of the RfM Ufo light up in red.

Here you can see all the plastics:

RfM_dual_color_MOD_01

I was using a new green Flasher CAP and cut some plastic at the outer site.

To see the red light only at the 8 holes I have to cover the innersite  of the UFO with black adhesive

RfM_dual_color_MOD_02

Here you see the lighttransmitter pins connected with the help of  some glue

RfM_dual_color_MOD_03

here you can see how it looks with the sticks

RfM_dual_color_MOD_04

The Motorpart:

Here I have to do the 4 LEDS for the flasher replacement up at the gear. Now with the help of the plastic its easier to solder

RfM_dual_color_MOD_07

Here you can see the 4 red Leds

RfM_dual_color_MOD_05

site view

RfM_dual_color_MOD_06

together

RfM_dual_color_MOD_08

RfM_dual_color_MOD_09

Here you can see it into the RfM

RfM_dual_color_MOD_10

RfM_dual_color_MOD_11

RfM_dual_color_MOD_12
Video:

Theatre of Magic Magic Doves

Mittwoch, März 16th, 2011

I only have the rabbit mod for ToM and saw somebody else have put some little doves into the pinball.
I tried it too with the usual led modding and the help a 3mm power led in white it looks like this.
ToM_Dove_01

ToM_Dove_02

ToM_Dove_03

ToM_Dove_04

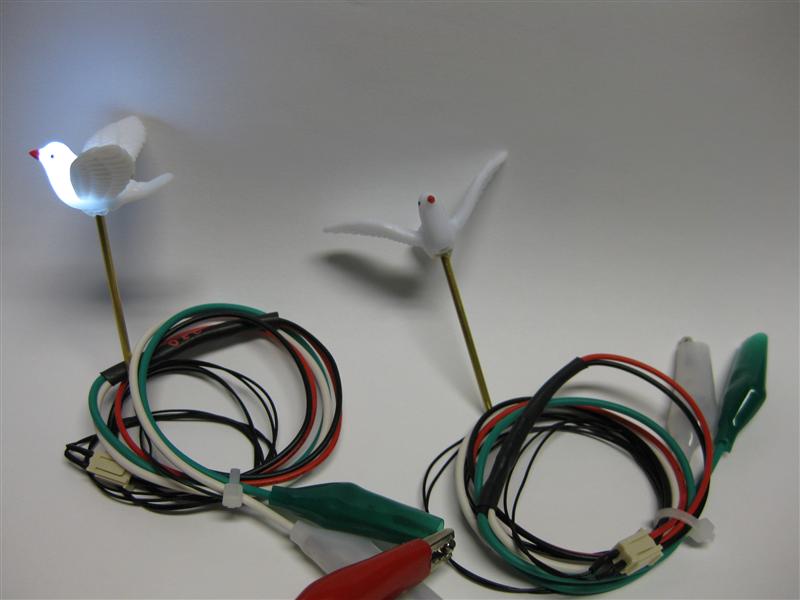

You can connect it with alligator connectors to a insert lamp and I will try it later in my pinball and looks where to place and connect.

ToM_Dove_05

ToM_Dove_06

Today I got the plastics

ToM_Dove_07

total

ToM_Dove_08

at the right place

ToM_Dove_09

ToM_Dove_10

Rotating UFO for Attack From Mars Proof of Concept

Dienstag, März 15th, 2011

My little motor needs a redesign for Attack from Mars, because the flasher only on for a short time.

The ufo didn’t turn in this short time.

The Bulb is powering the 4 Leds around the motor as flasher replacement and added 2 more wires with alligatorconnectors to power up the motor. The two wires can connected to any insert lamp under the playfield or GI if you want to turn it all the time…

afm_motor_01

afm_motor_02

Look here into my little video and there is in real a attack from Mars and the answer which one is better is ansered thanks to the attack of my little UFO in medieval time…

I will try the motor in a real AFM in around 2 weeks thanks to www.flippermuseum.eu.

Video:

Rotating try to add red color to outer saucer area

Donnerstag, März 10th, 2011

Today I do a quick try to add a red color to the outer 8 leds of the saucer.

Its only a work in progress try and it looks not good.

In the next step I will make a plastic and use some lighttransmitting plastic to transport the light to the 8 points of the saucer…

rfm_try_red_01

rfm_try_red_02

rfm_try_red_03

Rotating Ufo for RfM and Attack from Mars

Mittwoch, März 2nd, 2011

After my LED work its time to do some moving stuff

Here I got the idea to make the flashing Ufos rotate…

I found a litte motor and put some Leds around it to make it work.

It will be easy to do in the final product. You only have to remove the original bulb and replace it with the gearmotor with Leds around it.

Here you see the gear plastic it will fit into the flasher cab and make it rotate with the help of the motor

rfm_motor_01

rfm_motor_02

First try for the motor

rfm_motor_03

some resistor to make the speed ok

rfm_motor_04

some leds to make the flasher work again

rfm_motor_05

motor into the ufo flasher cab

rfm_motor_06.5

here you got a first look of rotating…

rfm_motor_07

ingame:

RfM_rotating_small

Video:

today I got the right sockets for the motors…

with_socket

some cutting, soldering…

with_socket_2

socket_3

with both rotating

both_rotating

what you will get

what_you_get

how to exchange…

turn flashercab to remove the ufo

exchange_01

remove the original lamp

exchange_02

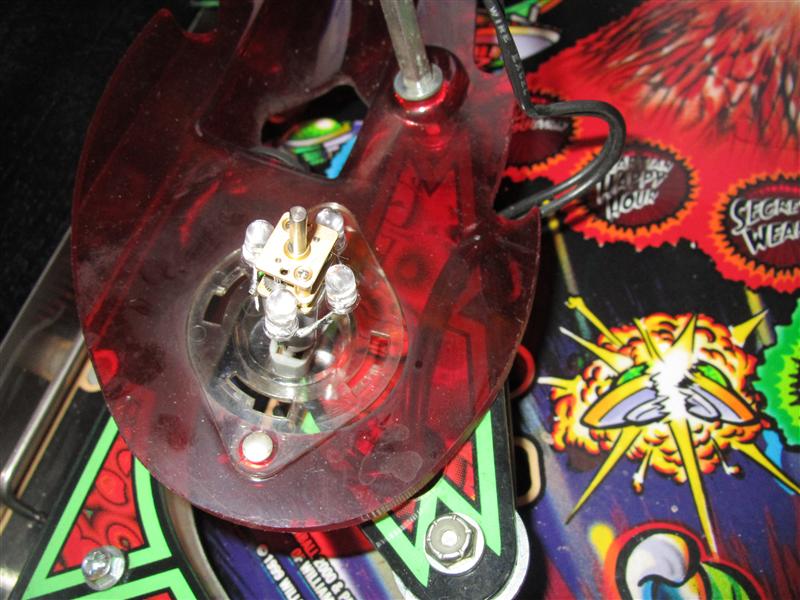

insert the motorset

exchange_03

exchange_04

insert the plastic gear ring into the flashercap

exchange_05

Magic Trunk Candlelight Replacement for Theatre of Magic Pinball

Freitag, Februar 18th, 2011

I done a litte mod to a Theatre of Magic Pinball. The original red Lamp in the Magic Trunk doesn’t look well and I found a solution. I tried the head of a LED candlelight and used a highpower 5mm LED and put it together in a socket for a Lamp

TOM_Magic_Trunk_Candlelight_Replacement_01

TOM_Magic_Trunk_Candlelight_Replacement_02

reducing the size of the led and the candlelight cover

TOM_Magic_Trunk_Candlelight_Replacement_03

As there is a 6V power Lamp I need here a resistor of each 100Ohm (total 200Ohm)

TOM_Magic_Trunk_Candlelight_Replacement_04

some hot glue

TOM_Magic_Trunk_Candlelight_Replacement_05

Here you can see the final product

14876_1blog

14876_2blog

placed in the magic trunk

TOM_Magic_Trunk_Candlelight_Replacement_off

TOM_Magic_Trunk_Candlelight_Replacement_on

Video:

Rebirth of the Dragon “Light him up”

Donnerstag, Februar 17th, 2011

First I take the prepared doubleheaded Dragon look here

http://wolfsoft.de/wordpress/?p=1112

After this I am using 5 Leds to make up the eyes to live and one mouth give us fire for a breath…

I used a 2,5mm drill to make the holes through the eyes and with the help of some inelastic copper wire it was easier to get the flexible copper wires through the holes.

doublehead_dragon_01

doublehead_dragon_02

3mm power leds in yellow for the eyes

5mm power led in red for the mouth

doublehead_dragon_03

As the necks are bended I need to make more holes to get from the head to the chest

If you look from the normal pinball view to the Dragon you will not see the wires :-)

doublehead_dragon_04

I have to position the tail like this, so the ball will “ride” over the ramp without trouble

doublehead_dragon_05

Some pics in the pinball

doublehead_dragon_06

The left wing was a little to high and there was a problem with the glass but no problem with the help of a heat-gun. So the wing is fitting under the playfield.

double_headed_install_09 (Custom)

doublehead_dragon_07

First Lightup

doublehead_dragon_08

doublehead_dragon_09

complete view

doublehead_dragon_10

Today I got a transparent Plexi for the mouth.
Its a first beta try, have some other idea in mind and I will show it later…

Video:

Today I got the 3D plastic. It is scratched with firelines so it looks more real and the plastic transports the light of the led better as standard plastics.

Thanks to my wife to put two plastics together to make it more 3D

3DPlastic_with_firelines

Here you can see it attached to the dragon

Dragon_with_fire

and finaly
Video:

I done some more pictures and finaly got the wires through the neck. So you will see NO WIRES outsite of the dragon anymore!
double_headed_install_00

Here you can see the cables you have only to connect it inbetween the flashercable of the dragon flasher

double_headed_install_000

a dragonslayer at work!
This was needed to make the wires invisible. I got it and all wires are going insite the dragon.

dragonslayer (Custom)

dragonslayer_01 (Custom)

dragonslayer_02 (Custom)

Missing entrance plastic for Medieval Madness

Donnerstag, Februar 3rd, 2011

I recently bought a custom decal set for the targets and the entrance bracket from pinballdecals.com (thanks for this Joey).

But the decal for the entrance bracket is only a adhesive decal and it’s missing the plastic.
I made a vector graphic and ordered a plastic cutted with a laser.

Here you see se original left and right plastics and in the middle the new parts:

entrance_plastic_compare

I went to a advertising company and get some double sided transparent adhesive to connect the decal to the bottom of the new plastic

entrance_plastic_building

entrance_plastic_building_2

entrance_plastic_building_test

After making this one, I am thinking of make a new bigger one, covers the complete bracket…

bigger_03

Left Ramp Troll LED Mod for Medieval Madness

Dienstag, Januar 11th, 2011

I found a nice Troll, fits into the MM Theme and put it on the left ramp.
With the help of some plastic it can connected to the left ramp.
The eyes where replaced with yellow/orange 3mm Leds for the Eye glow mod.

If you want a Troll including this eye led mod you can order it here:

http://www.wolfsoft.de/shop/product_info.php/products_id/14870

or sent me an email to klaus@wolfsoft.de and I will take care of you order. Please sent me your complete adress for checking the shipping costs.

I done the two holes first with a 1,5mm drill, then with a 2,5mm.
After this I drill a hole from the back to the eyes the holes are like a Y.

Look here:
troll_01

First Led

troll_02

This helps me to get the two flex wires though the hole:

troll_03

both Eyes replaced by leds

troll_04

first glow

troll_05

dark glow

troll_06

pics on the playfield will follow…

Preview without LED MOD

preview

today I got the lasered plastics look here

I connected the feed with two screws and I don’t have trouble with airballs

troll_with_plate_01

free

troll_with_plate_free

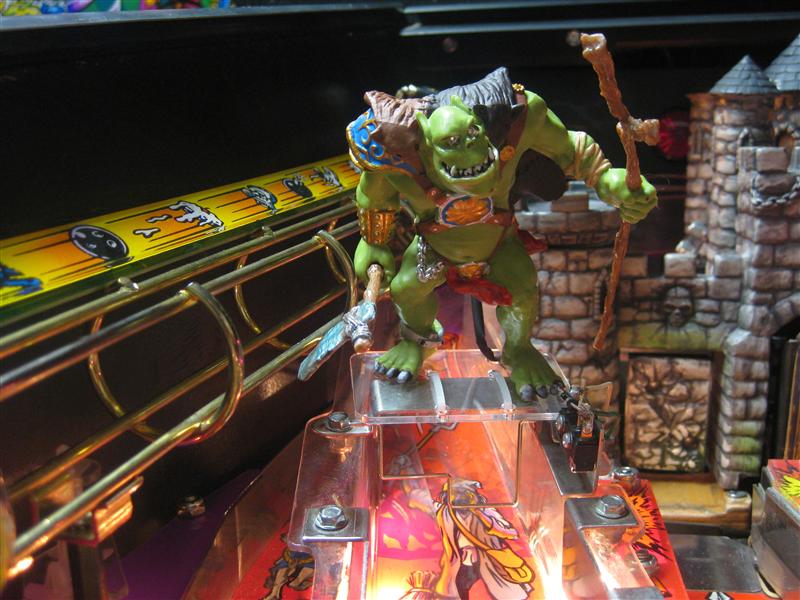

Here you can see it in action:

troll_inside_01

troll_inside_02

troll_inside_03

troll_inside_04

Intstallation Manual

Here you find a video:

“Simba” LED Mod for Cirqus Voltaire Pinball

Dienstag, Januar 11th, 2011

I found Panther called simba for placing it in a Cirqus Voltaire Pinball. As there is one displayed on the playfield it fits to the main theme.

If you want a Simba including this eye led mod you can order it here:

http://www.wolfsoft.de/shop/product_info.php/products_id/14872

or sent me an email to klaus@wolfsoft.de and I will take care of you order. Please sent me your complete adress for checking the shipping costs.
Here you can see how I add the green LEDs to the eyes.
I used a 2,5mm Drill and 3mm LEDs in green for the eye replacement. The installation is done solderless with the “croco” connectors to the 28 bear playfield flasher with two 680 Ohm Resistors.

Drill 2,5 extra long into the
simba_making_off_01

to get the cables out of the panther use a drill from downsite 8-9mm in diameter:

two green leds 3mm:

simba_making_off_03

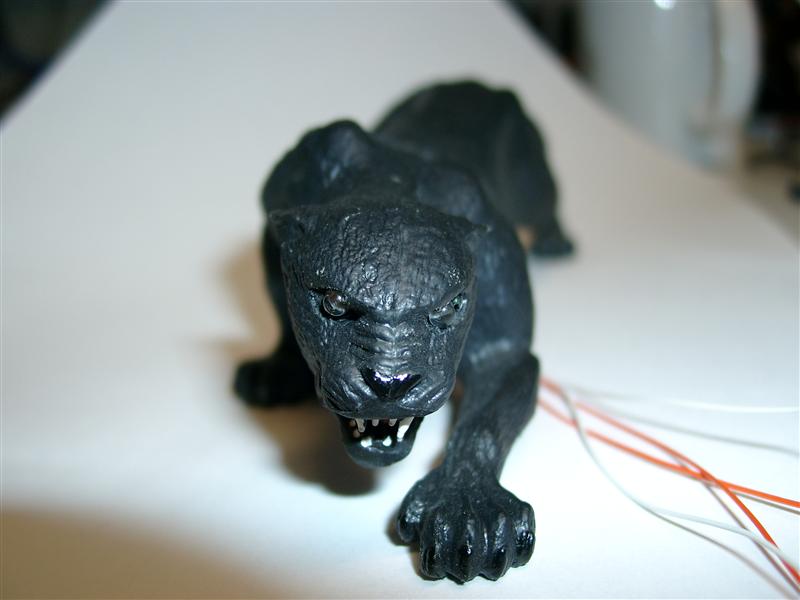

eyes pushed into the eye holes

simba_making_off_04

connector to get the cables though the playfield without soldering

simba_making_off_05

(the resistors are 680Ohm, because I saw too late it will not be connected not to a insert lamp. It will be connected to a flash-lamp)

first light up

simba_making_off_06

dangerous in the dark…

simba_making_off_07

with “croco” connector to get it work at the flasher lamp

simba_making_off_08

Here you can see it @ work:

panther_green_on

simba_01

simba_02

simba_05

I vectorized the outline of the plastics needed for connect simba to the playfield
Here is the new plastic with holes for the simba

simba_replacement_plastic

connecting simba with two 2,5mm screws

simba_plastic_2

the third leg is sitting on the plastic with the flash

simba_screw_sitting_s

simba_alligator_s

simba_alligator_2_s

Installation Manual

Video:
